SEAT  LUMBAR SWITCH  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



PROCEDURE

Hide 84920C 1.INSTALL FRONT POWER SEAT SWITCH ASSEMBLY RH

a.

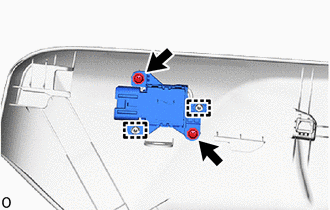

B650812

Attach the guide.


b.

Install the front power seat switch assembly RH with the 2 screws.


Hide 71811T 2.INSTALL FRONT SEAT CUSHION SHIELD RH

HINT:

Use the same procedure described for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY


Hide 71848Q 3.INSTALL FRONT SEAT NO. 3 ADJUSTER COVER CAP RH

HINT:

Use the same procedure described for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY


Hide 72525M 4.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH

HINT:

Use the same procedure described for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY


Hide 72551K 5.INSTALL RECLINING HINGE COVER RH

HINT:

Use the same procedure described for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY


Hide 72494A 6.INSTALL FRONT SEAT VERTICAL ADJUSTER HANDLE RH

HINT:

Use the same procedure described for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY
