AUDIO / VIDEO  AUDIO AND VISUAL SYSTEM(for Radio Receiver Type)  Mute Signal Circuit between Radio Receiver and Telematics Transceiver


DESCRIPTION

The telematics transceiver sends a mute signal to the radio receiver assembly.

The radio receiver assembly controls the volume according to the mute signal from the telematics transceiver.

WIRING DIAGRAM

E350600E11
5,2 6.688,2.198 1.688,0.198 10 false Radio Receiver Assembly 5,1.802 5.458,2 0.458,0.198 10 false O11 0.979,2 3.094,2.25 2.115,0.25 10 false Telematics Transceiver 0.979,1.802 1.438,2 0.458,0.198 10 false N209 1.531,1.052 2.146,1.25 0.615,0.198 10 false MUTE 5.219,1.052 5.833,1.25 0.615,0.198 10 false TMUT 5,0.917 5.156,1.115 0.156,0.198 10 false 8 2.083,0.917 2.323,1.167 0.24,0.25 10 false 14

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for audio and visual system.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (for Radio Receiver Type)>PRECAUTION

·

When replacing the telematics transceiver, make sure to replace it with a new one.



PROCEDURE

1.CHECK TELEMATICS TRANSCEIVER
a.

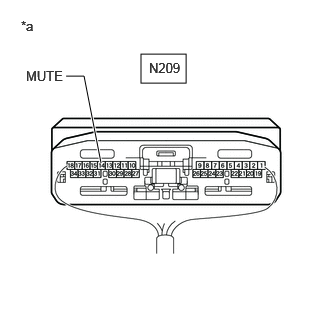

E427105C76
1.469,0.563 1.938,0.865 0.469,0.302 1.052,1.698 0.875,0.792 0.875,0.792 0.688,0.792 true 1.552,0.625 2.406,1.094 0.854,0.469 10 false N209 0.271,0.708 0.76,0.906 0.49,0.198 10 false MUTE 0.219,0.188 0.531,0.385 0.313,0.198 10 false *a
*a Component with harness connected
(Telematics Transceiver)


Remove the telematics transceiver with the connector(s) still connected.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER (for LHD)>REMOVAL


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N209-14 (MUTE) - Body ground Ignition switch ACC
Audio system playing
→ Emergency call mode 		3.5 V or higher
→ Below 1 V



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (for Radio Receiver Type)>PROBLEM SYMPTOMS TABLE


NG

2.CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)
2.CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)
a.

Disconnect the O11 radio receiver assembly connector.


b.

Disconnect the N209 telematics transceiver connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O11-8 (TMUT) - N209-14 (MUTE) Always Below 1 Ω
O11-8 (TMUT) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.CHECK RADIO RECEIVER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK RADIO RECEIVER ASSEMBLY
a.

Disconnect the telematics transceiver connector.


b.

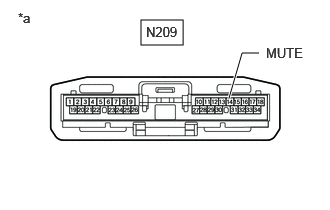

E427085C19
1.469,0.208 1.906,0.469 0.438,0.26 2.385,1.021 2.521,0.552 2.521,0.552 2.698,0.552 true 1.521,0.25 2.031,0.531 0.51,0.281 10 false N209 2.771,0.469 3.26,0.667 0.49,0.198 10 false MUTE 0.188,0.104 0.5,0.302 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Telematics Transceiver)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N209-14 (MUTE) - Body ground Ignition switch ACC 3.5 V or higher



Result:
Proceed to
OK
NG



OK

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER (for LHD)>REMOVAL


NG

REPLACE RADIO RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL
