RM35X0E _52 Drivetrain _079259 AXLE AND DIFFERENTIAL _0385113 FRONT AXLE HUB A

AXLE AND DIFFERENTIAL FRONT AXLE HUB REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front axle hub assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Front wheel alignment adjustment	· Perform reset memory · Perform acceleration sensor zero point calibration and store system information memorization.	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(201902,999999,_54,_078667,_0385049,RM100000001GK1P,)
Suspension, tires, etc.	Television camera assembly optical axis (Back camera position setting)	Parking assist monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRB,202310,999999,_56,_079315,_0385736,RM100000002G5JM,)
	· Parking assist ECU initialization · Adjust steering angle	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
	Perform headlight ECU sub-assembly LH initialization	Lighting system (EXT)(w/ Headlight ECU)	(201906,999999,_59,_079256,_0396321,RM100000001IGX8,)

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL201902,999999,_V1,_078672,_0387313,RM100000001GWDK,

Hide Display 89543 2.DISCONNECT FRONT SPEED SENSOR LH

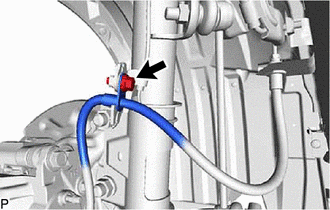

Remove the bolt and disconnect the front speed sensor LH and front flexible hose from the front shock absorber assembly LH.

NOTICE:: Be sure to separate the front speed sensor LH and front flexible hose from the front shock absorber assembly LH completely.

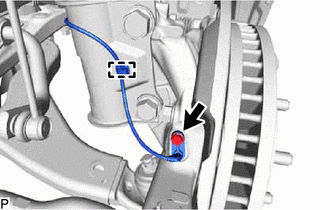

Remove the bolt, disengage the clamp and disconnect the front speed sensor LH from the front shock absorber assembly LH and steering knuckle LH.

NOTICE:: ·

Prevent foreign matter from contacting the sensor tip.

·

Be careful not to damage the front speed sensor LH.

·

Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor LH is removed.

Hide Display 45047 3.DISCONNECT TIE ROD END SUB-ASSEMBLY LH

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR (for LHD)>REMOVAL201902,999999,_55,_079314,_0388802,RM100000001H42S_01_0016,

Hide Display 4.DISCONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB BOLT>REPLACEMENT201902,999999,_52,_079259,_0385112,RM100000001GKGC_01_0018,

Hide Display 43512 5.REMOVE FRONT DISC

Click hereBrake>BRAKE (FRONT)>FRONT BRAKE>REMOVAL201902,999999,_54,_078670,_0387338,RM100000001GWHP_01_0020,

Hide Display 48069 6.DISCONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT LOWER SUSPENSION ARM>REMOVAL201906,999999,_53,_078876,_0384534,RM100000001J043_01_0056,

Hide Display 7.REMOVE FRONT AXLE ASSEMBLY LH

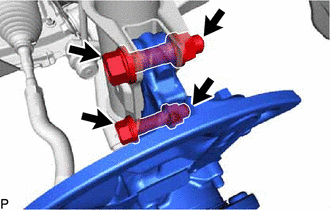

Remove the 2 bolts, 2 nuts and front axle assembly from the front shock absorber assembly LH.

NOTICE:: When removing the nuts, keep the bolts from rotating.

Hide Display 43502C 8.REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH

Secure the front axle assembly between aluminum plates in a vise.

NOTICE:: Do not overtighten the vise.

Remove the 4 bolts, front axle hub sub-assembly LH and front disc brake dust cover from the steering knuckle LH.

NOTICE:: ·

Do not drop the front axle hub sub-assembly LH.

·

Be careful not to damage the speed sensor rotor or contact surfaces.

·

Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
