DOOR / HATCH BACK DOOR ELECTRICAL KEY SWITCH INSTALLATION

PROCEDURE

Hide Display 84945 1.INSTALL LUGGAGE ELECTRICAL KEY SWITCH

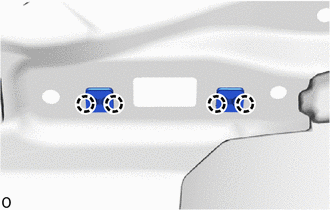

Attach the claw and install the 2 grommets.

Attach the claw and install the luggage electrical key switch.

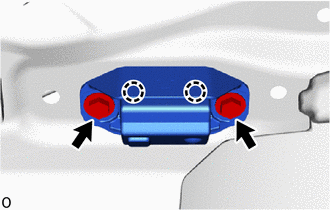

Install the 2 screws.

NOTICE:: Do not reuse a luggage electrical key switch that has been subjected to an impact or dropped.

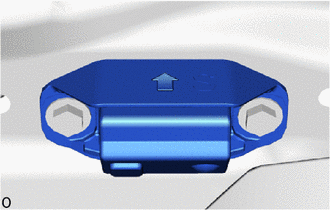

HINT:: Install the luggage electrical key switch so that its arrow faces the outside of the vehicle.

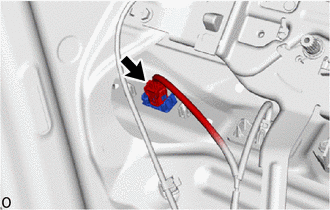

Connect the connector.

Hide Display 76801 2.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
