MIRROR (EXT)  OUTER REAR VIEW MIRROR  INSTALLATION

87940 1.INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH

a.

0,0 0,0 false

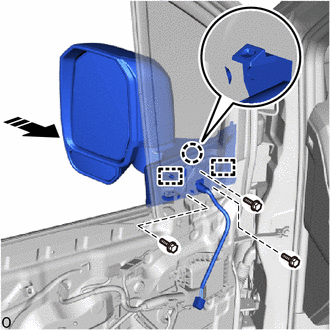

Install in this Direction

Attach the claw and guide to set the outer rear view mirror assembly LH.

NOTICE:

Hold the outer rear view mirror assembly LH with one hand so that it does not drop.

b.

Install the outer rear view mirror assembly LH with the 3 bolts.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

c.

w/ Power Mirror Control System:

i.

Connect the wire harness connector.

68193C 2.INSTALL FRONT DOOR FRONT BELT SEAL LH

a.

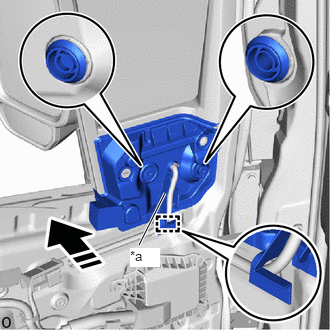

1.448,2.552 1.719,2.01 true 1.354,2.583 1.667,2.781 0.313,0.198 10 true *a

*a	Slit
	Install in this Direction

w/ Power Mirror Control System:

i.

Pass the wire harness through the slit and attach the guide as shown in the illustration.

ii.

Attach the grommet and install the front door front belt seal LH as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

w/o Power Mirror Control System:

i.

Attach the grommet and install the front door front belt seal LH as shown in the illustration.

68172A 3.INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP LH

67602 4.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

5.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

6.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

69278B 7.INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH

60117A 8.INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY LH

9.PERFORM SYSTEM INITIALIZATION AND CALIBRATION (w/ Panoramic View Monitor System)
