RM35X0E _56 Audio / Visual / Telematics _079315 PARK ASSIST / MONITORING _0398772 TELEVISION CAMERA(for Front) A

PARK ASSIST / MONITORING  TELEVISION CAMERA(for Front)  INSTALLATION


PROCEDURE

Hide 86790B 1.INSTALL FRONT TELEVISION CAMERA ASSEMBLY

a.

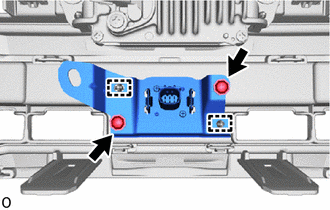

B552446

Attach the guide temporarily install the front television camera assembly.


b.

Install the 2 screws.


Hide 86799 2.INSTALL TELEVISION CAMERA WIRE

a.

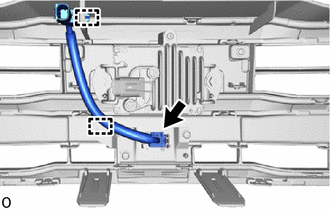

B552445

Attach the wire harness clamp and install the television camera wire.


b.

Connect the connector.
