EXTERIOR PANELS / TRIM  SIDE MUDGUARD(except Wagon)  REMOVAL

2.073,1.958 1.729,2.313 1.729,2.313 1.698,1.708 true 2.719,2.51 2.479,2.208 true 1.625,2.333 1.792,2.531 0.167,0.198 10 true *a 2.719,2.5 2.885,2.698 0.167,0.198 10 true *b

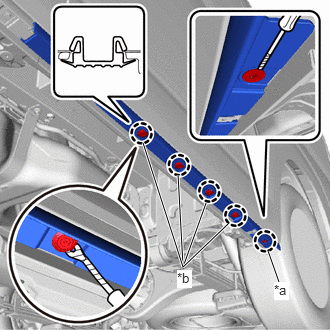

*a	Quarter Panel Mudguard Retainer
*b	Grommet
	Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the grommet.

NOTICE:

The grommet must not be reused.

HINT:

Tape the thin-bladed screwdriver tip before use.

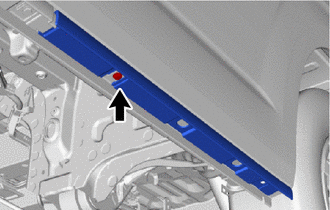

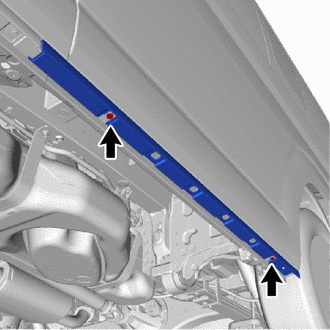

Remove the screw.

0,0 0,0 false

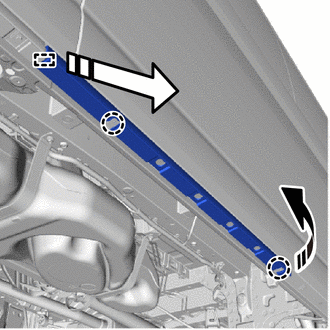

	Remove in this Direction (1)
	Remove in this Direction (2)

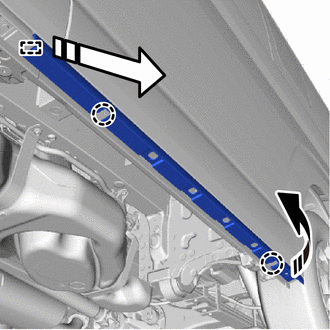

Pull the rear quarter panel mudguard LH from the rear to detach the claw and guide and remove the rear quarter panel mudguard LH as shown in the illustration.

0,0 0,0 false

Protective Tape

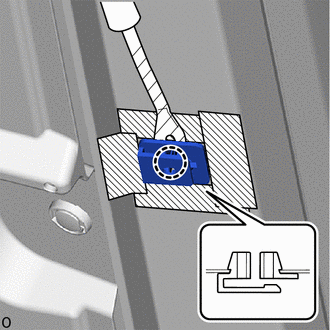

Apply protective tape around the quarter panel mudguard retainer.

2.188,2.208 1.854,2.719 1.854,2.719 1.938,1.969 true 1.625,1.667 1.854,2.719 1.854,2.719 2.406,2.365 true 1.781,2.74 1.948,2.938 0.167,0.198 10 true *a

*a	Slide Door Mudguard Retainer
	Protective Tape

Using a clip remover, detach the claw and remove the 4 slide door mudguard retainers.

NOTICE:

The slide door mudguard retainer must not be reused.

HINT:

Tape the clip remover tip before use.

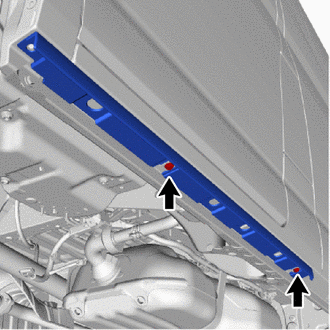

Remove the 2 screws.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

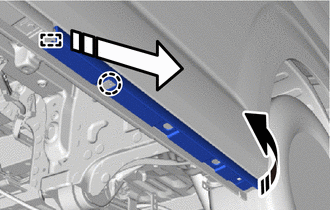

Pull the lower slide door mudguard LH from the rear to detach the claw and guide and remove the lower slide door mudguard LH as shown in the illustration.

2.146,2.115 1.906,2.781 1.906,2.781 1.854,1.823 true 2.792,2.615 2.906,2.938 true 2.375,2.333 1.906,2.781 1.906,2.781 1.49,1.49 true 2.854,2.938 3.01,3.125 0.156,0.188 10 true *a 1.844,2.813 2,3 0.156,0.188 10 true *b

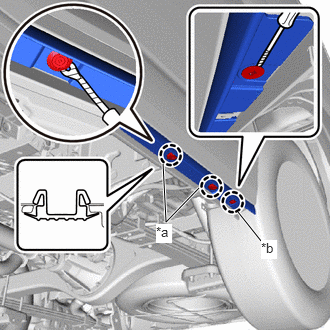

*a	Grommet
*b	Slide Door Mudguard Retainer
	Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the grommet.

NOTICE:

The grommet must not be reused.

HINT:

Tape the thin-bladed screwdriver tip before use.

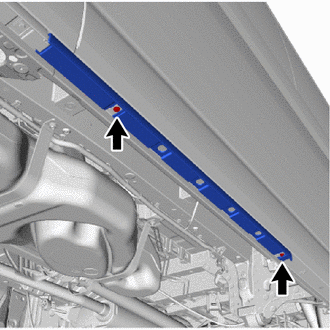

Remove the 2 screws.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Pull the lower slide door mudguard LH from the rear to detach the claw and guide and remove the lower slide door mudguard LH as shown in the illustration.

0,0 0,0 false

Protective Tape

Apply protective tape around the slide door mudguard retainers.

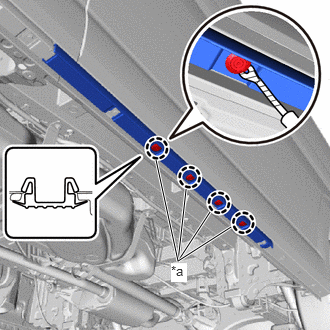

0.51,0.552 1.021,0.354 true 2.083,2.104 1.604,2.854 1.604,2.854 2.354,2.323 true 1.052,1.208 1.604,2.854 1.604,2.854 2.656,2.531 true 1.031,0.229 1.219,0.427 0.188,0.198 10 true *a 1.49,2.885 1.677,3.083 0.188,0.198 10 true *b

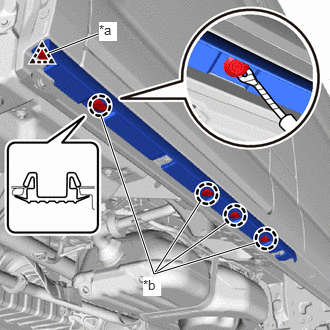

*a	Clip
*b	Front Door Side Mudguard Retainer
	Protective Tape

Using a clip remover, detach the claw and remove the 4 front door side mudguard retainers.

NOTICE:

The front door side mudguard retainer must not be reused.

HINT:

Tape the clip remover tip before use.

Remove the 2 screws.

0,0 0,0 false

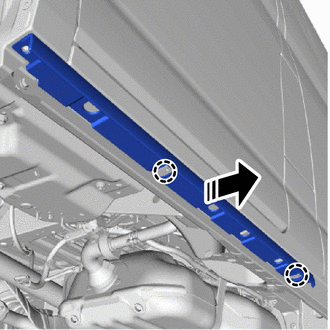

Remove in this Direction

Detach the claw and remove the front door side mudguard LH as shown in the illustration.

0,0 0,0 false

Protective Tape

Apply protective tape around the front door side mudguard retainers.
