EXTERIOR PANELS / TRIM  REAR WHEEL HOUSE PLATE  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 65632D 1.REMOVE REAR FRONT WHEEL HOUSE PLATE LH

a.
B524273

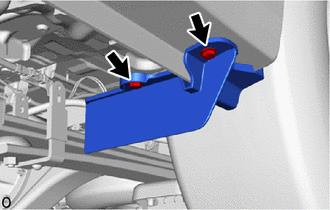

Remove the 2 screws.


b.
B524274C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)

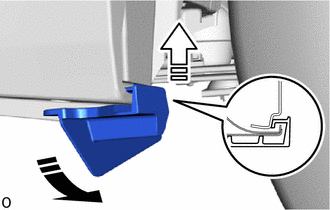

Remove the rear front wheel house plate LH as shown in the illustration.
