SUPPLEMENTAL RESTRAINT SYSTEMS  FRONT PASSENGER AIRBAG ASSEMBLY  DISPOSAL


CAUTION / NOTICE / HINT

CAUTION:

Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.


HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
·

Do not perform this procedure indoors or on rough roads where safety cannot be ensured. Also, do not deploy SRS parts near residential areas.

·

If this procedure is performed indoors or on rough roads where safety cannot be ensured, unforeseen injuries may occur. Also, the deployment noise creates a nuisance to nearby residents.

B401137



HINT:

When scrapping a vehicle equipped with an SRS or disposing of the instrument panel passenger airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.


Hide 2.DISPOSE OF INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

NOTICE:

Be sure to observe the following procedure when deploying the airbag.


HINT:
·

Prepare a battery as the power source to deploy the airbag.

·

In this procedure, the inflator of the front passenger airbag assembly is deployed first. Next, the actuator is deployed.



a.
C110371N08
0.99,1.208 0.792,0.771 0.792,0.771 0.646,0.771 false 0.323,0.688 0.781,0.885 0.458,0.198 10 SST

Check the function of SST.

SST
09082-00700

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>DISPOSAL


b.

Refer to Precaution.

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION



c.

Disconnect the cable from the negative (-) battery terminal.

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




d.

Remove the instrument panel passenger airbag assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT PASSENGER AIRBAG ASSEMBLY>REMOVAL


e.

Install SST.

i.
B528874
1.823,1.969 2.677,1.052 2.677,1.052 2.375,1.885 false 2.729,0.969 3.063,1.146 0.333,0.177 10 false SST

After connecting the following SST to each other, connect them to the instrument panel passenger airbag assembly.

SST
09082-00802  (09082-10801, 09082-30801)



f.
B104882C91
2.854,0.99 3.094,1.167 0.24,0.177 10 false *a
*a Wire Diameter
V100155

Stripped Wire Cross Sectional Area


Using braided wire, tie down the instrument panel passenger airbag assembly to an unneeded tire.

Wire:
Cross-sectional area of stripped wire:

1.25 mm2 (0.0019 in.2) or more


CAUTION:

If the wire harness is too thin or an alternative object is used to tie down the instrument panel passenger airbag assembly, it may snap when the airbag is deployed. Always use a wire for vehicle use with a cross-sectional area of at least 1.25 mm2 (0.0019 in.2).


HINT:

To calculate the area of the cross-sectional area of stripped wire:

Area = 3.14 x (Diameter)2 / 4


i.

Position the instrument panel passenger airbag assembly inside the tire with the airbag deployment side facing inside.

Minimum tire size:

Must exceed the following dimensions

Width:

185 mm (7.28 in.)

Inner diameter:

360 mm (1.18 ft.)


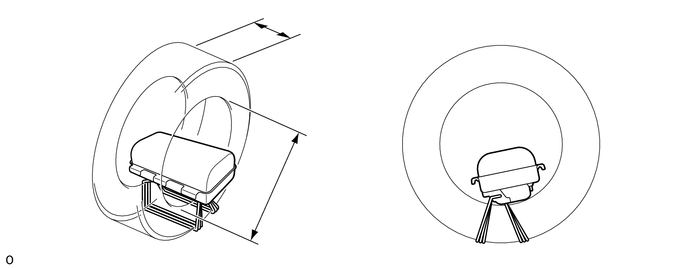

B528875
2.844,0.156 3.156,0.313 0.313,0.156 10 false *b 2.958,1.865 3.271,2.021 0.313,0.156 10 false *a
*a Inner Diameter *b Width


CAUTION:
B528876
0,0 0,0 false
V100155

Deployment Side


·

Do not install the instrument panel passenger airbag assembly with the deployment side facing outside.

·

When securing the instrument panel passenger airbag assembly, make sure there is no looseness in the wire harness.

·

If the deployment side is facing outside or the wire harness is loosely wrapped, the deployed instrument panel passenger airbag assembly and tire may fly off and cause serious injuries.



NOTICE:

The tires may be damaged by the airbag deployment, so use unneeded tires.




g.

Place the tires.

i.

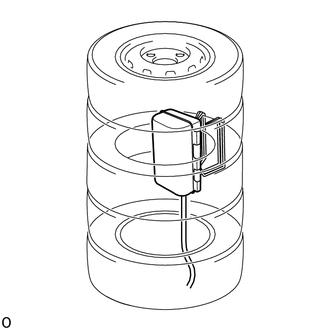

B528877
2.469,2.792 2.792,2.792 2.792,2.792 2.792,0.865 true 2.448,2.198 2.781,2.198 true 2.458,1.292 2.792,1.292 true 2.479,0.875 3.021,0.875 true 3.073,0.781 3.281,1.01 0.208,0.229 10 false *a
*a Tires (2 or more)


Place at least 2 tires under the tire to which the instrument panel passenger airbag assembly is tied.


ii.

Place at least 2 tires onto the tire to which the instrument panel passenger airbag assembly is tied. The top tire should have a wheel installed.

NOTICE:
·

Do not place SST connector under the tire because it could be damaged.

·

The tires and wheel may be damaged by the airbag deployment, so use unneeded tires and wheels.




iii.
C223306

Tie the tires together with 2 wires.



h.

Install SST.

i.

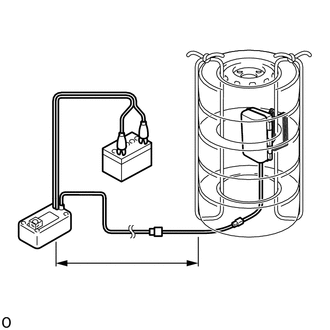

B528878
2.375,2.396 2.323,3.188 2.323,3.188 1.469,2.438 true 1.229,2.781 1.542,2.938 0.313,0.156 10 false *a 2.354,3.188 2.729,3.365 0.375,0.177 10 false SST
*a 10 m (32.8 ft.) or more


Connect SST together (09082-00700 and 09082-10801).

SST
09082-00700

NOTICE:

To avoid damaging SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for SST wire harness inside the tire.



ii.

Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.



i.

Deploy the instrument panel passenger door airbag assembly.

i.

Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.


ii.

Check that no one is within a 10 m (32.8 ft.) radius of the wheel to which the instrument panel passenger airbag assembly is tied.


iii.

Press SST activation switch and deploy the airbag.

CAUTION:
B401667

·

Do not deploy with people around the tire.

·

If deployed with people around the tire, serious injuries may occur.



HINT:

The airbag is deployed as the LED of SST activation switch comes on.




j.

Dispose of the instrument panel passenger airbag assembly.

CAUTION:
·
B394925

The instrument panel passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·
B394927

Do not apply water etc. to an instrument panel passenger airbag assembly with a deployed airbag.

·

If water is applied to the instrument panel passenger airbag assembly immediately after deployment, burns may occur from the resulting steam.

·
B394929

Always wear safety glasses and gloves when handling a deployed instrument panel passenger airbag assembly.

·

If the instrument panel passenger airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·
B394912

Never dispose of an instrument panel passenger airbag assembly with an undeployed airbag.

·

If an undeployed instrument panel passenger airbag assembly is disposed of, and then deploys for any reason, unforeseen injuries may occur.

·

Always wash your hands with water after completing the operation.



i.

Remove the instrument panel passenger airbag assembly from the tire.


ii.

Place the instrument panel passenger airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations.
