SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201906,999999,_58,_078601,_0398432,RM100000001IVY7,

Hide Display 79J67E 2.REMOVE REAR NO. 3 SEAT NO. 3 LEG SIDE COVER

0,0 0,0 false

Remove in this Direction

Detach the hook and remove the rear No. 3 seat No. 3 leg side cover as shown in the illustration.

Hide Display 71834Q 3.REMOVE LH SEAT REAR NO. 3 SEAT RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)>DISASSEMBLY201906,999999,_58,_078601,_0398432,RM100000001IVY8_02_0008,

Hide Display 73330J 4.REMOVE REAR SEAT 3 PERSONS LAP TYPE BELT ASSEMBLY

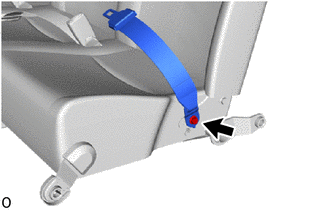

Remove the bolt and rear seat 3 persons lap type belt assembly.
