RM35X0E _53 Suspension _078877 REAR SUSPENSION _0397335 REAR LOWER ARM A

REAR SUSPENSION REAR LOWER ARM INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

Hide Display 48258C 1.INSTALL REAR LOWER COIL SPRING INSULATOR

Hide Display 48720 2.TEMPORARILY INSTALL LOWER CONTROL ARM ASSEMBLY

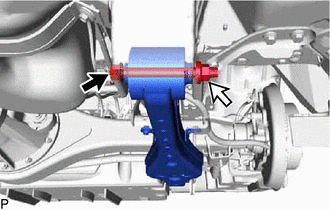

Temporarily install the lower control arm assembly to the vehicle body with the nut, washer and bolt.

Hide Display 48231B 3.INSTALL REAR COIL SPRING

Hide Display 46430 4.CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

Hide Display 48530 5.INSTALL REAR SHOCK ABSORBER ASSEMBLY

Hide Display 6.STABILIZE SUSPENSION

Hide Display 48720 7.INSTALL LOWER CONTROL ARM ASSEMBLY

Hide Display 8.INSTALL REAR WHEEL

Hide Display 9.PERFORM INITIALIZATION
