REAR SUSPENSION  REAR SHOCK ABSORBER(for Wagon)  INSTALLATION

0.563,2 0.729,2 0.729,2 0.729,2.167 false 0.406,1.938 0.74,2.188 0.333,0.25 10 false *1 0.875,0 1.031,0.198 0.156,0.198 10 true A 2.99,1.656 3.146,1.854 0.156,0.198 10 true B

*1	Rear Shock Absorber Cushion Washer

Install the rear shock absorber cushion washer to the vehicle body.

NOTICE:

Make sure to install the rear shock absorber cushion washer in the correct direction.

0.521,0.615 0.677,0.813 0.156,0.198 10 true A

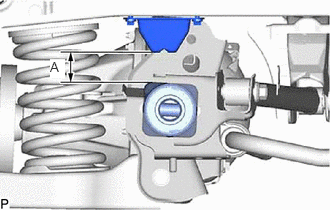

Using a jack, apply load to the suspension so that the rear axle housing assembly is positioned as shown in the illustration.

Standard Length (A):

75 mm (2.953 in.)

CAUTION:

Do not jack up the rear axle housing assembly too high as the vehicle may fall.

NOTICE:

·

When jacking up the rear axle housing assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.

1.24,0.01 1.396,0.208 0.156,0.198 10 true A

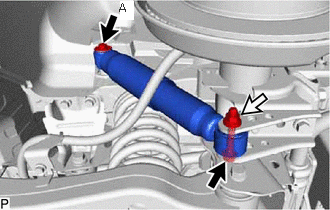

Install the rear shock absorber assembly with the bolt (A) and nut.

Torque:

Bolt (A) : 68 N*m (693 kgf*cm, 50 ft.*lbf)

Nut : 75 N*m (765 kgf*cm, 55 ft.*lbf)

NOTICE:

When installing the nuts, keep the bolts from rotating.
