RM35X0E _53 Suspension _078877 REAR SUSPENSION _0397333 REAR COIL SPRING A

REAR SUSPENSION REAR COIL SPRING INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 48341 1.INSTALL REAR SPRING BUMPER

Install the rear spring bumper to the vehicle body with the 2 bolts.

Torque:: 32 N*m (326 kgf*cm, 24 ft.*lbf)

Hide Display 48259A 2.INSTALL REAR UPPER COIL SPRING INSULATOR

Install the rear upper coil spring insulator to the vehicle body.

Hide Display 48258C 3.INSTALL REAR LOWER COIL SPRING INSULATOR

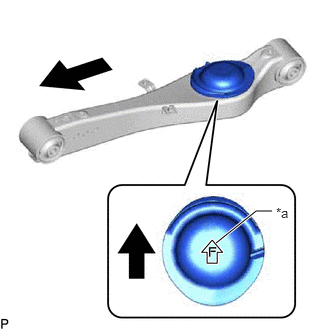

2.25,2.531 2.667,2.198 2.667,2.198 2.833,2.198 true 2.875,2.135 3.208,2.385 0.333,0.25 10 false *a

*a	Arrow Mark
	Front of the Vehicle

Install the rear lower coil spring insulator to the lower control arm assembly.

NOTICE:: Make sure to install the rear lower coil spring insulator with its arrow facing the front of the vehicle.

Hide Display 48231B 4.INSTALL REAR COIL SPRING

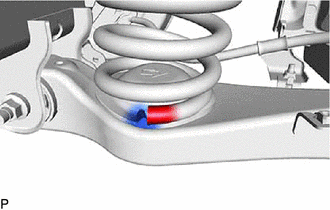

Align the end of the rear coil spring with the flange of the rear lower coil spring insulator and install the rear coil spring.

Using a jack and wooden block, slowly jack up the lower control arm assembly and then install the lower control arm assembly to the rear axle housing assembly with the nut, washer and bolt.

CAUTION:: Do not jack up the lower control arm assembly too high as the vehicle may fall.

NOTICE:: ·

When jacking up the lower control arm assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.

·

Insert the bolt from the outside of the vehicle.

Hide Display 46430 5.CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

Connect the No. 3 parking brake cable assembly to the lower control arm assembly with the bolt.

Torque:: 20 N*m (204 kgf*cm, 15 ft.*lbf)

Hide Display 48530 6.INSTALL REAR SHOCK ABSORBER ASSEMBLY

Click hereSuspension>REAR SUSPENSION>REAR SHOCK ABSORBER (for Wagon)>INSTALLATION201906,999999,_53,_078877,_0397388,RM100000001IOVL,

Hide Display 7.STABILIZE SUSPENSION

Click hereSuspension>REAR SUSPENSION>REAR SHOCK ABSORBER (for Wagon)>INSTALLATION201906,999999,_53,_078877,_0397388,RM100000001IOVL_01_0003,

Hide Display 48720 8.INSTALL LOWER CONTROL ARM ASSEMBLY

Install the lower control arm assembly with the 2 nuts.

Torque:: 200 N*m (2039 kgf*cm, 148 ft.*lbf)

NOTICE:: When installing the nuts, keep the bolts from rotating.

Hide Display 9.INSTALL REAR WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>INSTALLATION201902,999999,_53,_079312,_0387328,RM100000001GWG0,

Hide Display 10.PERFORM INITIALIZATION

Parking assist monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRB,202310,999999,_56,_079315,_0385736,RM100000002G5JM,)
Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
Lighting system (EXT)(w/ Headlight ECU)	(201906,999999,_59,_079256,_0396321,RM100000001IGX8,)
