RM35X0E _53 Suspension _078877 REAR SUSPENSION _0397333 REAR COIL SPRING A

REAR SUSPENSION REAR COIL SPRING REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear coil spring removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced:

Replacement Part or Procedure	Necessary Procedures	Effects/Inoperative when not Performed	Link
Suspension, tires, etc.	Television camera assembly optical axis (Back camera position setting)	Parking assist monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRB,202310,999999,_56,_079315,_0385736,RM100000002G5JM,)
Suspension, tires, etc.	· Parking assist ECU initialization · Adjust steering angle	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
Replacement of the rear height control sensor sub-assembly LH, removal and reinstallation of the rear height control sensor sub-assembly LH, replacement of the suspension, etc. have been performed	Perform headlight ECU sub-assembly LH initialization	Lighting system (EXT)(w/ Headlight ECU)	(201906,999999,_59,_079256,_0396321,RM100000001IGX8,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL201902,999999,_53,_079312,_0387328,RM100000001GWFZ,

Hide Display 48530 2.REMOVE REAR SHOCK ABSORBER ASSEMBLY

Click hereSuspension>REAR SUSPENSION>REAR SHOCK ABSORBER (for Wagon)>REMOVAL201906,999999,_53,_078877,_0397388,RM100000001IOVO,

Hide Display 46430 3.DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

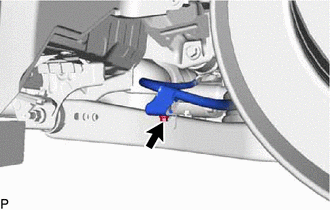

Remove the bolt and disconnect the No. 3 parking brake cable assembly from the lower control arm assembly.

Hide Display 48231B 4.REMOVE REAR COIL SPRING

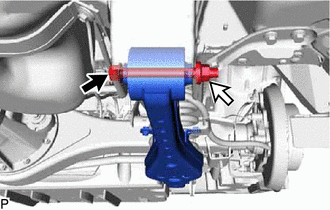

Loosen the nut of the lower control arm assembly.

NOTICE:: When removing the nuts, keep the bolts from rotating.

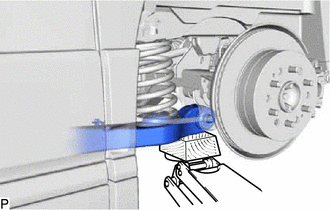

Using a jack and wooden block, support the lower control arm assembly.

NOTICE:: ·

When jacking up the lower control arm assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.

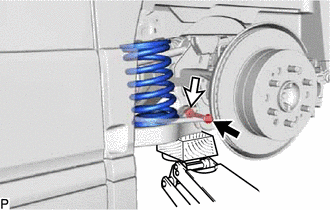

Remove the nut, washer and bolt to separate the lower control arm assembly from the rear axle housing assembly.

NOTICE:: When removing the nuts, keep the bolts from rotating.

Slowly lower the lower control arm assembly, and then remove the rear coil spring.

Hide Display 48259A 5.REMOVE REAR UPPER COIL SPRING INSULATOR

Remove the rear upper coil spring insulator from the vehicle body.

Hide Display 48258C 6.REMOVE REAR LOWER COIL SPRING INSULATOR

Remove the rear lower coil spring insulator from the lower control arm assembly.

Hide Display 48341 7.REMOVE REAR SPRING BUMPER

Remove the 2 bolts and rear spring bumper from the vehicle body.
