RM35X0E _53 Suspension _078877 REAR SUSPENSION _0397388 REAR SHOCK ABSORBER(for Wagon) A

REAR SUSPENSION REAR SHOCK ABSORBER(for Wagon) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear shock absorber assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced:

Replacement Part or Procedure	Necessary Procedures	Effects/Inoperative when not Performed	Link
Suspension, tires, etc.	Television camera assembly optical axis (Back camera position setting)	Parking assist monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRB,202310,999999,_56,_079315,_0385736,RM100000002G5JM,)
Suspension, tires, etc.	· Parking assist ECU initialization · Adjust steering angle	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
Replacement of the rear height control sensor sub-assembly LH, removal and reinstallation of the rear height control sensor sub-assembly LH, replacement of the suspension, etc. have been performed	Perform headlight ECU sub-assembly LH initialization	Lighting system (EXT)(w/ Headlight ECU)	(201906,999999,_59,_079256,_0396321,RM100000001IGX8,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL201902,999999,_V1,_078672,_0387313,RM100000001GWDK,

Hide Display 65638A 2.DISCONNECT REAR WHEEL HOUSE LINER

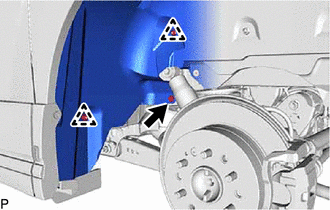

Remove the 2 clips, grommet and disconnect the rear wheel house liner.

Hide Display 48530 3.REMOVE REAR SHOCK ABSORBER ASSEMBLY

Using a jack and wooden block, support the rear axle housing assembly.

NOTICE:: ·

When jacking up the rear axle housing assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.

Loosen the nut.

NOTICE:: When removing the nuts, keep the bolts from rotating.

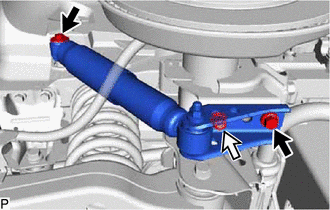

Remove the 2 bolts, nut and rear shock absorber assembly, rear lower shock absorber bracket and 2 rear shock absorber bushes from the rear axle housing assembly and vehicle body.

Remove the 2 rear shock absorber bushes from the rear shock absorber assembly.

Remove the rear shock absorber cushion washer.

Hide Display 48518A 4.REMOVE REAR LOWER SHOCK ABSORBER BRACKET

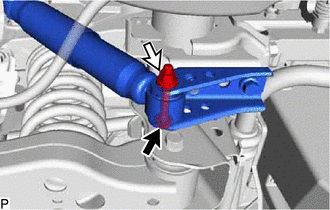

Remove the nut, washer, bolt and rear lower shock absorber bracket from the rear shock absorber assembly.

NOTICE:: When removing the nuts, keep the bolts from rotating.
