RM35X0E _56 Audio / Visual / Telematics _079315 PARK ASSIST / MONITORING _0385742 ULTRASONIC SENSOR(for Rear) A

PARK ASSIST / MONITORING  ULTRASONIC SENSOR(for Rear)  INSTALLATION


PROCEDURE

Hide 89348S 1.INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER

NOTICE:
·

Installing the rear center ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.



HINT:

Perform the following procedure only when replacement of a rear center ultrasonic sensor retainer is necessary.


a.

Clean the rear bumper cover surface.

i.

Remove any remaining double-sided tape from the rear bumper cover.


ii.

Wipe off any tape adhesive residue with cleaner.



b.
B502899
1.51,0.156 1.823,0.354 0.313,0.198 10 false *a 2.635,1.167 2.948,1.365 0.313,0.198 10 false *a
*a 30 mm (1.18 in.)


Cover the sensor installation hole from the outside of the rear bumper cover with a 30 mm (1.18 in.) square piece of tape.


c.

Apply primer to the rear bumper cover on the installation area of the rear center ultrasonic sensor retainer using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear center ultrasonic sensor retainer has been attached.

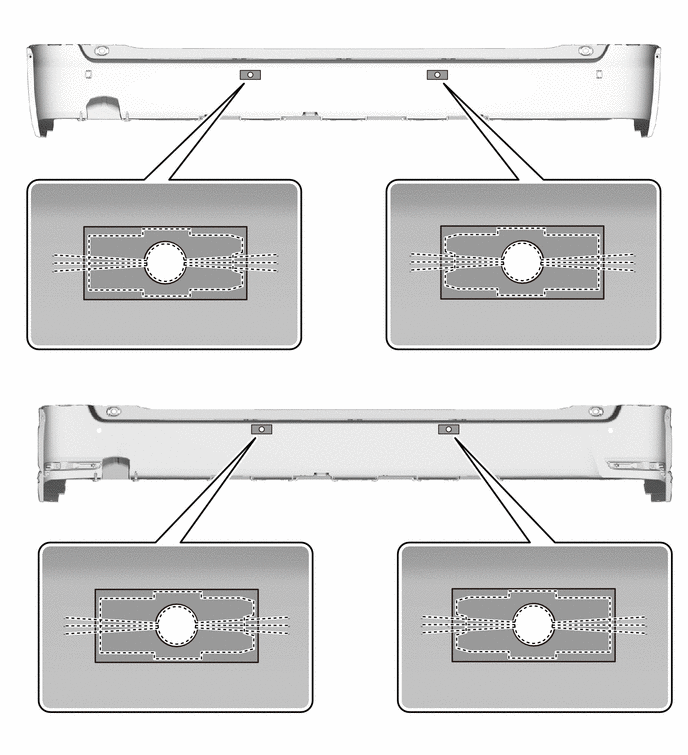

B552435
6,3.333 6,3 true 1.177,3.365 1.177,3.031 true 6.063,7.156 6.063,6.823 true 1.26,7.135 1.26,6.802 true 1.083,3.385 1.313,3.583 0.229,0.198 10 true *a 5.917,3.375 6.146,3.573 0.229,0.198 10 true *a 0.167,0.094 0.479,0.5 0.313,0.406 12 false *A 0.188,3.833 0.5,4.156 0.313,0.323 12 false *B 5.979,7.188 6.208,7.385 0.229,0.198 10 true *a 1.188,7.156 1.417,7.354 0.229,0.198 10 true *a
*A except Wagon *B for Wagon
*a Scribed Line - -
V100145

Primer Application - -



d.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



e.

Confirm that the primer has completely dried by touching the rear bumper cover. Then remove the tape.


f.

Remove the peeling paper of a new rear center ultrasonic sensor retainer trying not to touch the adhesional surface.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work glove.



g.

Align the 2 rear center ultrasonic sensor retainers with the scribed line on the rear bumper cover and install it as shown in the illustration.

NOTICE:

The application strength of the rear center ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:
·

Apply pressure so that it does not lift up from the rear bumper cover.

·

Pushing force: 30 N (3.1 kgf) for 3 seconds

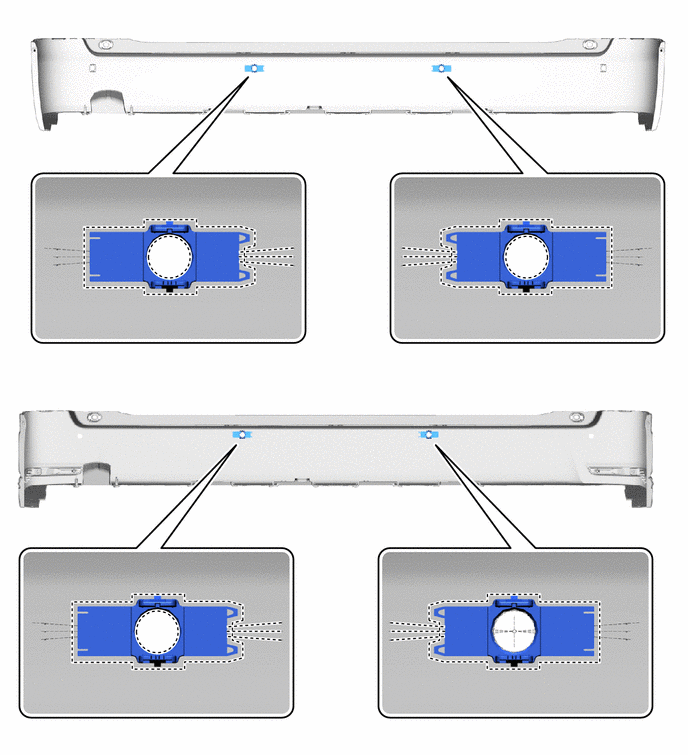

B552436
5.917,3.25 5.917,3 true 1.083,3.24 1.083,2.99 true 5.844,7.167 5.844,6.917 true 0.979,7.156 0.979,6.906 true 0.99,3.26 1.219,3.458 0.229,0.198 10 true *a 5.844,3.271 6.073,3.469 0.229,0.198 10 true *a 0.167,0.094 0.5,0.417 0.333,0.323 12 false *A 0.188,3.75 0.5,3.99 0.313,0.24 12 false *B 0.885,7.188 1.115,7.385 0.229,0.198 10 true *a 5.74,7.208 5.969,7.406 0.229,0.198 10 true *a
*A except Wagon *B for Wagon
*a Scribed Line - -



Hide 89348R 2.INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER

NOTICE:
·

Installing the rear corner ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.



HINT:

Perform the following procedure only when replacement of a rear corner ultrasonic sensor retainer is necessary.


a.

Clean the rear bumper cover surface.

i.

Remove any remaining double-sided tape from the rear bumper cover.


ii.

Wipe off any tape adhesive residue with cleaner.



b.
B502899
1.51,0.156 1.823,0.354 0.313,0.198 10 false *a 2.635,1.167 2.948,1.365 0.313,0.198 10 false *a
*a 30 mm (1.18 in.)


Cover the sensor installation hole from the outside of the rear bumper cover with a 30 mm (1.18 in.) square piece of tape.


c.

Apply primer to the rear bumper cover on the installation area of the rear corner ultrasonic sensor retainer using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear corner ultrasonic sensor retainer has been attached.

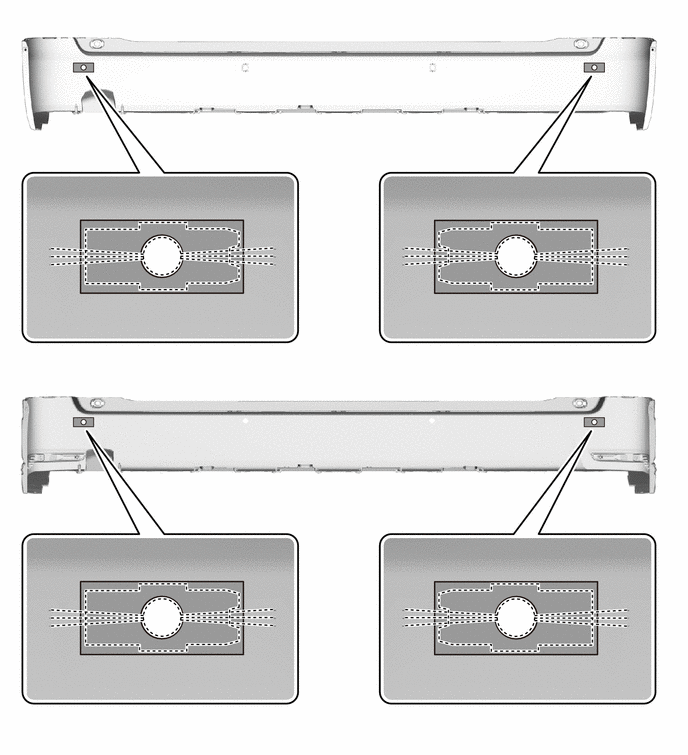

B552437
5.958,3.302 5.958,2.969 true 1.156,3.302 1.156,2.969 true 5.885,7.073 5.885,6.74 true 1.135,7.083 1.135,6.75 true 1.063,3.313 1.292,3.51 0.229,0.198 10 true *a 5.885,3.313 6.115,3.51 0.229,0.198 10 true *a 0.083,0.094 0.417,0.333 0.333,0.24 12 false *A 0.104,3.75 0.417,4.073 0.313,0.323 12 false *B 1.042,7.094 1.271,7.292 0.229,0.198 10 true *a 5.792,7.063 6.021,7.26 0.229,0.198 10 true *a
*A except Wagon *B for Wagon
*a Scribed Line - -
V100145

Primer Application - -



d.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



e.

Confirm that the primer has completely dried by touching the rear bumper cover. Then remove the tape.


f.

Remove the peeling paper of a new rear corner ultrasonic sensor retainer trying not to touch the adhesional surface.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work glove.



g.

Align the 2 rear corner ultrasonic sensor retainer with the scribed line on the rear bumper cover and install it as shown in the illustration.

NOTICE:

The application strength of the rear corner ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:
·

Apply pressure so that it does not lift up from the rear bumper cover.

·

Pushing force: 30 N (3.1 kgf) for 3 seconds

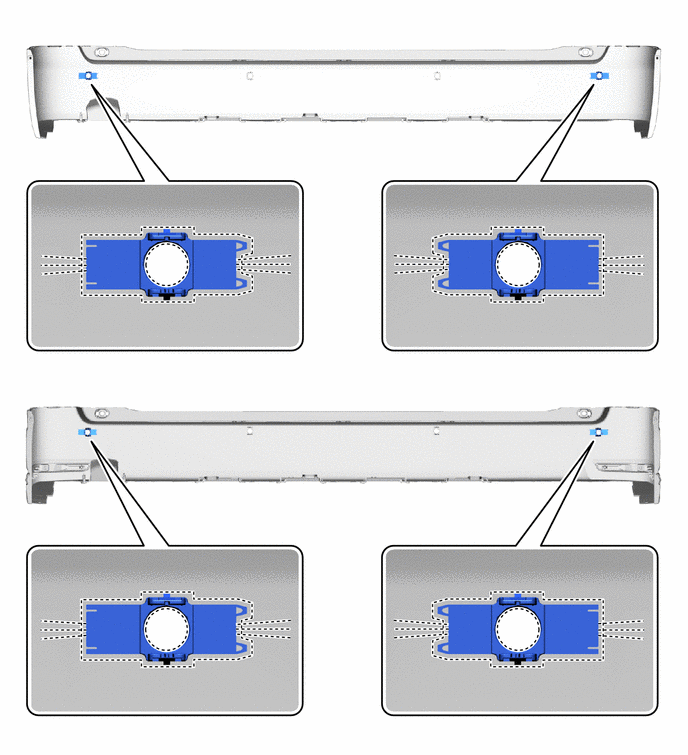

B552438
5.917,3.323 5.917,3.073 true 1.156,3.323 1.156,3.073 true 5.885,7.135 5.885,6.885 true 1.083,7.125 1.083,6.875 true 5.833,3.365 6.083,3.563 0.25,0.198 10 true *a 1.042,3.344 1.292,3.542 0.25,0.198 10 true *a 0.188,0.083 0.5,0.417 0.313,0.333 12 false *A 0.25,3.833 0.646,4.156 0.396,0.323 12 false *B 5.813,7.167 6.063,7.365 0.25,0.198 10 true *a 1.01,7.104 1.26,7.302 0.25,0.198 10 true *a
*A except Wagon *B for Wagon
*a Scribed Line - -



Hide 89348D 3.INSTALL ULTRASONIC SENSOR CLIP

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



a.
B540040

Attach the wire harness clamp and install the ultrasonic sensor clip.


Hide 89342A 4.INSTALL REAR CENTER ULTRASONIC SENSOR

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



a.

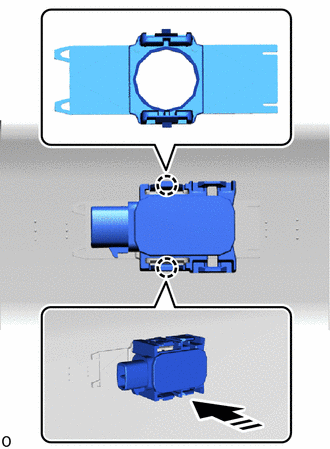

B540047
0.833,1.417 0.667,1.417 0.667,1.417 0.667,1.167 false 0.646,0.49 0.646,0.24 0.646,0.24 0.813,0.24 false 0.885,1.344 1.198,1.542 0.313,0.198 10 false *a 0.875,0.198 1.188,0.396 0.313,0.198 10 false *a
*a Protrusion of the Mark
V113147

Install in this Direction


Attach the claw to install the rear center ultrasonic sensor.

NOTICE:
·

When reusing the sensor, make sure that each sensor is returned to its original position.

·

Check that the claw is securely fitted.

·
B544353C01
0,0 0,0 false
V100155

Microphone Surface


Do not push the microphone surface.



HINT:

Align the connector with the protrusion of the mark when connecting it.



b.

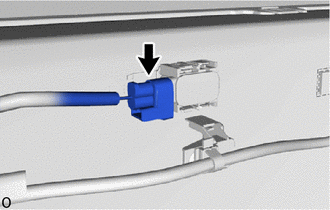

B540048

Connect the connector.


c.

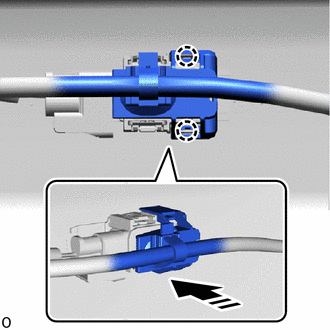

B540049
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear center ultrasonic sensor clip to the ultrasonic sensor as shown in the illustration.


Hide 89342 5.INSTALL REAR CORNER ULTRASONIC SENSOR

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



a.

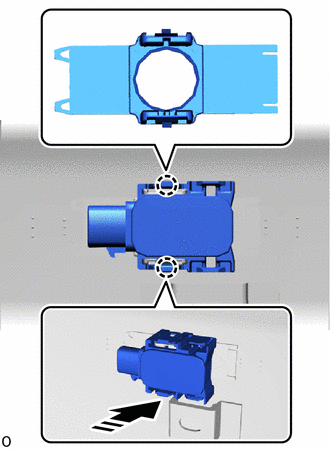

B540050
0.635,0.5 0.635,0.25 0.635,0.25 0.802,0.25 false 0.823,1.417 0.656,1.417 0.656,1.417 0.656,1.167 false 0.896,1.333 1.208,1.531 0.313,0.198 10 false *a 0.854,0.177 1.167,0.375 0.313,0.198 10 false *a
*a Protrusion of the Mark
V113147

Install in this Direction


Attach the claw to install the rear corner ultrasonic sensor.

NOTICE:
·

When reusing the sensor, make sure that each sensor is returned to its original position.

·

Check that the claw is securely fitted.

·
B544353C01
0,0 0,0 false
V100155

Microphone Surface


Do not push the microphone surface.



HINT:

Align the connector with the protrusion of the mark when connecting it.



b.
B525732

Connect the connector.
