RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397095 REAR BUMPER(except Wagon) A

EXTERIOR PANELS / TRIM  REAR BUMPER(except Wagon)  INSTALLATION


PROCEDURE

Hide 52166A 1.INSTALL REAR BUMPER UPPER COVER LH

a.

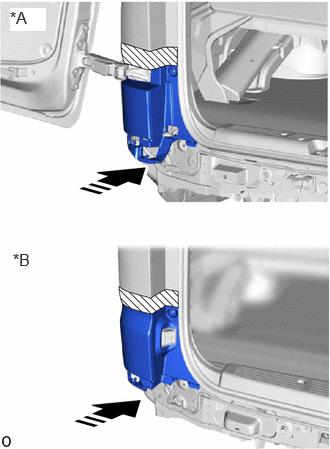

B656681C01
0.104,0.083 0.479,0.323 0.375,0.24 12 true *A 0.135,2.604 0.51,2.844 0.375,0.24 12 false *B
*A for Double Swing Out Type
*B except Double Swing Out Type
V113147

Install in this Direction


Install the rear bumper upper cover LH toward the front of the vehicle.


b.

Attach the claw as shown in the illustration.

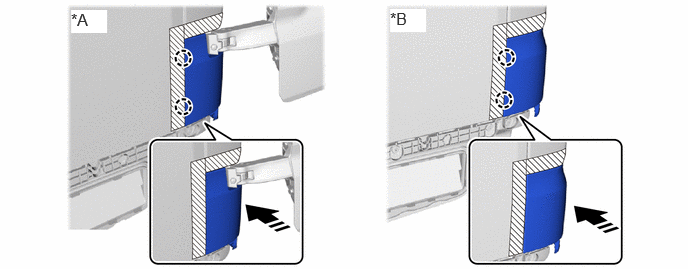

B656679C01
0.74,0.104 1.115,0.344 0.375,0.24 12 true *A 4.063,0.094 4.438,0.333 0.375,0.24 12 true *B
*A for Double Swing Out Type *B except Double Swing Out Type
V113147

Install in this Direction - -



c.

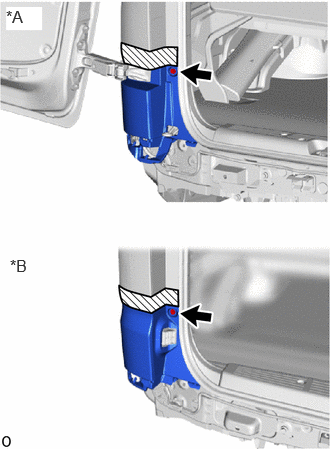

B656677C01
0.063,0.073 0.438,0.313 0.375,0.24 12 true *A 0.104,2.667 0.479,2.906 0.375,0.24 12 false *B
*A for Double Swing Out Type
*B except Double Swing Out Type


Install the screw.


d.

Remove the protective tape.


Hide 52165A 2.INSTALL REAR BUMPER UPPER COVER RH

HINT:

Use the same procedure for the RH and LH sides.


Hide 3.INSTALL REAR BUMPER ASSEMBLY

a.

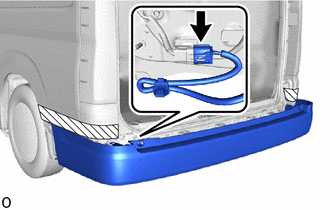

B525641

w/ TOYOTA Parking Assist-sensor System:

i.

Connect the connector.



b.

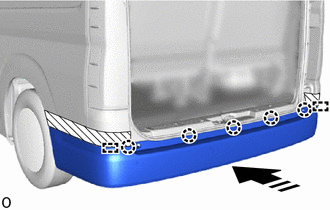

B525640C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide and install the rear bumper assembly as shown in the illustration.


c.

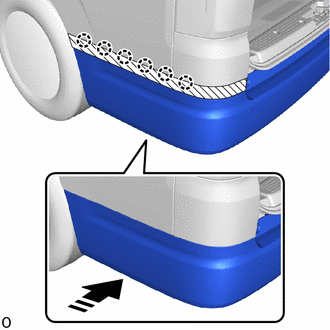

B525638C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.

HINT:

Use the same procedure for the RH and LH sides.



d.

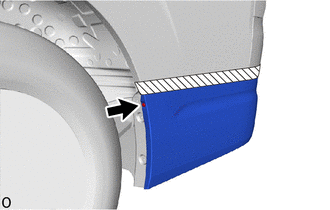

B525636

Install the clip.

HINT:

Use the same procedure for the RH and LH sides.



e.

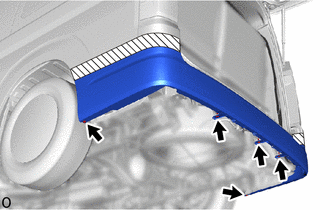

B525635

w/o Rear Bumper Lower Cover:

i.

Install the 5 clips.



f.

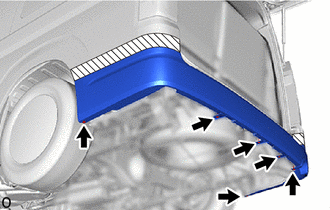

B552913

w/ Rear Bumper Lower Cover:

i.

Install the 6 clips.



g.

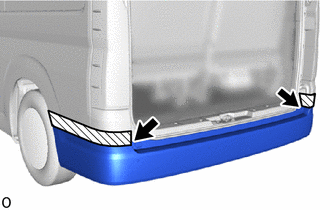

B540116

Install the 2 screws.


h.

Remove the protective tape.


Hide 52162B 4.INSTALL REAR BUMPER NO. 1 PLATE

HINT:
·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the LH side.



a.

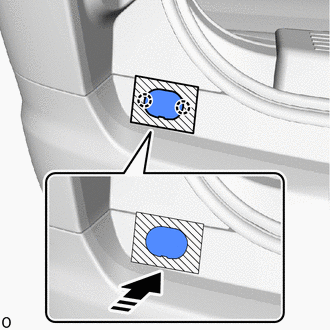

B525634C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear bumper No. 1 plate as shown in the illustration.


b.

Remove the protective tape.
