RM35X0E _56 Audio / Visual / Telematics _079315 PARK ASSIST / MONITORING _0385742 ULTRASONIC SENSOR(for Rear) A

PARK ASSIST / MONITORING  ULTRASONIC SENSOR(for Rear)  REMOVAL


PROCEDURE

Hide 89342 2.REMOVE REAR CORNER ULTRASONIC SENSOR

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



a.

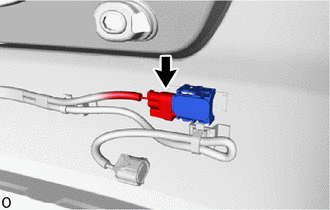

B525732

Disconnect the connector.


b.

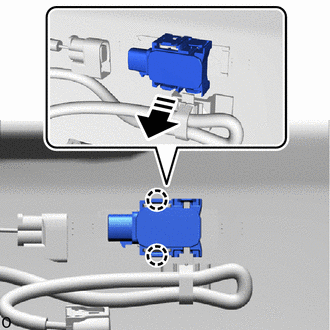

B525733
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the rear corner ultrasonic sensor.

NOTICE:

Before removing the sensor, make sure to mark the sensor and rear bumper cover so that each sensor can be returned to its original position.



Hide 89342A 3.REMOVE REAR CENTER ULTRASONIC SENSOR

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



a.

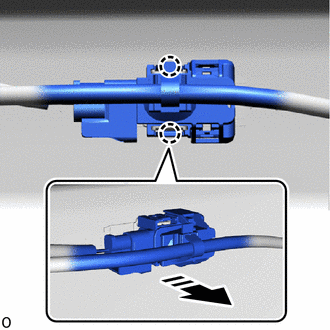

B525734
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the rear center ultrasonic sensor together with ultrasonic sensor clip.

NOTICE:

Before removing the sensor, make sure to mark the sensor and rear bumper cover so that each sensor can be returned to its original position.



b.
B540038

Disconnect the connector.


c.

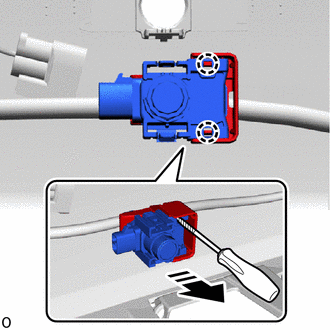

B540039
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a screwdriver, detach the claw to remove the rear center ultrasonic sensor as shown in the illustration.

HINT:

Tape the screwdriver tip before use.



Hide 89348D 4.REMOVE ULTRASONIC SENSOR CLIP

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



a.

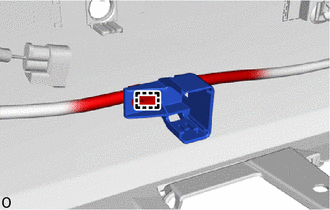

B540040

Detach the wire harness clamp and remove the ultrasonic sensor clip.


Hide 89348R 5.REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

HINT:
·

Perform the following procedure only when replacement of a rear corner ultrasonic sensor retainer is necessary.

·

When removing the rear corner ultrasonic sensor retainer, if the double-sided tape is difficult to remove, heat the adhesive of the rear corner ultrasonic sensor retainer and rear bumper cover using a heat light.



a.

Heat the rear bumper cover and rear corner ultrasonic sensor retainer using a heat light.

CAUTION:
E306500C76
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



Standard:
Item Temperature
Rear Bumper Cover 40 to 60°C (104 to 140°F)
Rear Corner Ultrasonic Sensor Retainer



b.

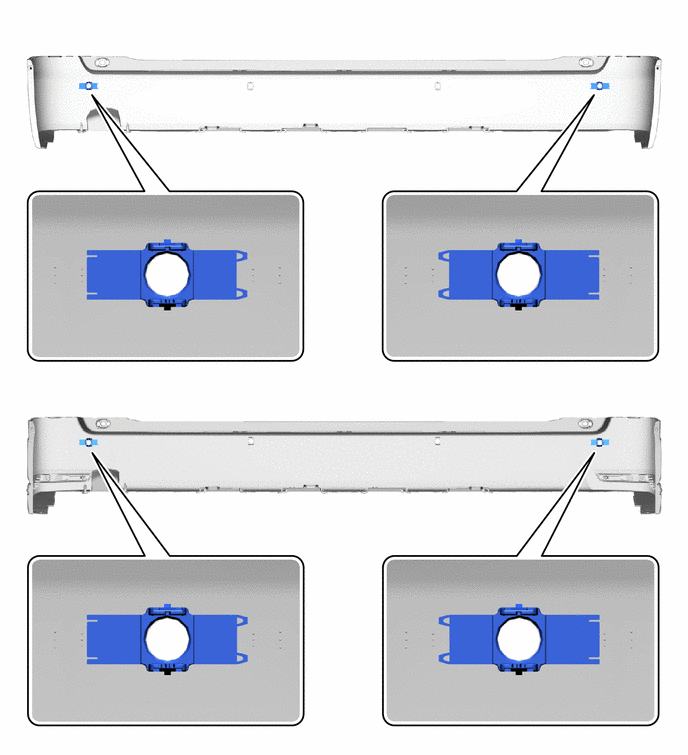

Remove the 2 rear corner ultrasonic sensor retainers.

B552433
0.167,0.094 0.5,0.333 0.333,0.24 12 false *A 0.167,3.927 0.5,4.167 0.333,0.24 12 false *B
*A except Wagon *B for Wagon



Hide 89348S 6.REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER

HINT:
·

Perform the following procedure only when replacement of a rear center ultrasonic sensor retainer is necessary.

·

When removing the rear center ultrasonic sensor retainer, if the double-sided tape is difficult to remove, heat the adhesive of the rear center ultrasonic sensor retainer and rear bumper cover using a heat light.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



a.

Heat the rear bumper cover and rear center ultrasonic sensor retainer using a heat light.

CAUTION:
E306500C76
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



Standard:
Item Temperature
Rear Bumper Cover 40 to 60°C (104 to 140°F)
Rear Center Ultrasonic Sensor Retainer



b.

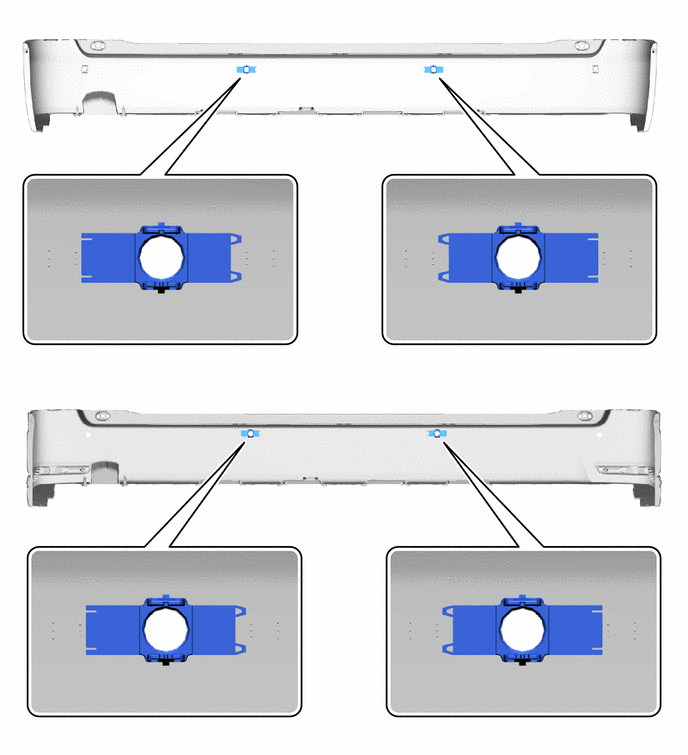

Remove the 2 rear center ultrasonic sensor retainers.

B552434
0.104,0.094 0.417,0.333 0.313,0.24 12 false *A 0.104,3.833 0.417,4.083 0.313,0.25 12 false *B
*A except Wagon *B for Wagon
