WIPER / WASHER  HEADLIGHT CLEANER MOTOR  INSTALLATION

85280A 1.INSTALL HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY

a.

0,0 0,0 false

Install in this Direction

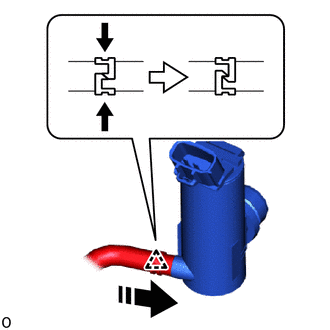

Install the headlight cleaner hose with the clip as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

Install the headlight cleaner motor and pump assembly as shown in the illustration.

c.

Connect the connector.

2.ADD WASHER FLUID

52119A 3.INSTALL FRONT BUMPER COVER

86790B 4.ADJUST FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
