RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0396932 HEADLIGHT CLEANER MOTOR A

WIPER / WASHER HEADLIGHT CLEANER MOTOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during headlight cleaner motor and pump assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)

PROCEDURE

Hide Display 52119A 1.REMOVE FRONT BUMPER COVER

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Wagon)>REMOVAL201906,999999,_59,_079322,_0397092,RM100000001IMT8,

Hide Display 2.DRAIN WASHER FLUID

Click hereVehicle Exterior>WIPER / WASHER>WASHER MOTOR>REMOVAL201906,202107,_59,_079320,_0385307,RM100000001IHYA_02_0006,202107,999999,_59,_079320,_0385307,RM100000001X17D_02_0006,

Hide Display 85280A 3.REMOVE HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY

0,0 0,0 false

Remove in this Direction

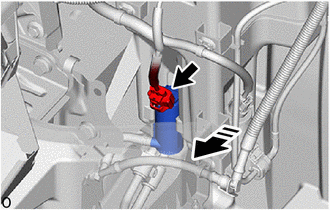

Disconnect the connector.

Remove the headlight cleaner motor and pump assembly as shown in the illustration.

0,0 0,0 false

Remove in this Direction

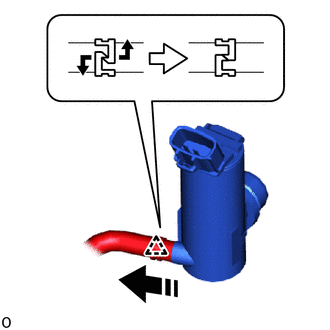

Loosen the clip and remove the headlight cleaner hose as shown in the illustration.
