RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0396930 HEADLIGHT CLEANER ACTUATOR A

WIPER / WASHER  HEADLIGHT CLEANER ACTUATOR  INSTALLATION


PROCEDURE

Hide 85208A 1.INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH

a.

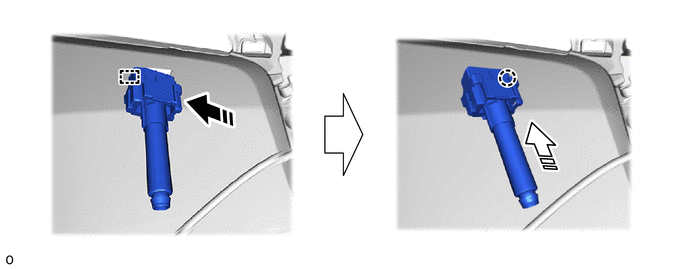

Attach the guide and claw as indicated by the arrows in the order shown in the illustration to install the headlight washer actuator sub-assembly LH.

B545084C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)



b.

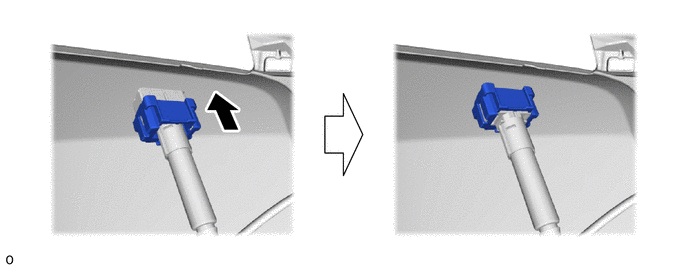

Slide the collar as shown in the illustration.

B545085


c.
B545086C01
0,0 0,0 false
V113147

Install in this Direction

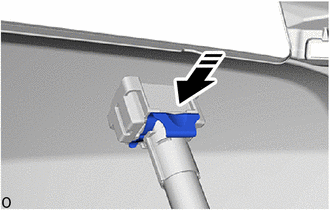

Install the headlight cleaner clamp as shown in the illustration.


d.
B545087C01
0,0 0,0 false
V113147

Connect in this Direction

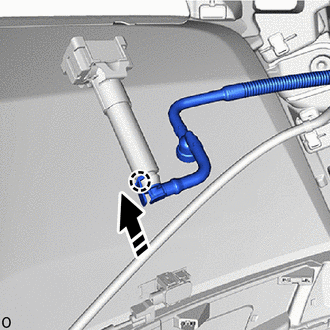

Attach the claw and connect the headlight cleaner hose as shown in the illustration.


Hide 85207A 2.INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 85353 4.INSTALL HEADLIGHT WASHER COVER RH

HINT:

Use the same procedure described for the LH side.
