RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0396732 FRONT SEAT SIDE AIRBAG ASSEMBLY(for Power Seat) A

SUPPLEMENTAL RESTRAINT SYSTEMS FRONT SEAT SIDE AIRBAG ASSEMBLY(for Power Seat) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 73920B 1.INSTALL FRONT SEAT AIRBAG ASSEMBLY LH

Install the front seat airbag assembly LH with 2 new nuts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

CAUTION:: Do not reuse the nut.

Attach the wire harness clamp.

Hide Display 2.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202208,_58,_078601,_0396271,RM100000001IGPM_05_0055,202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0055,

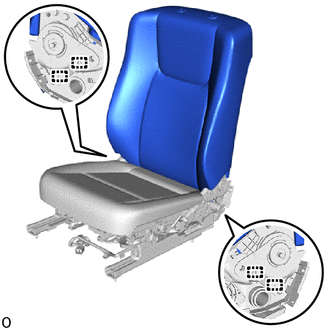

Hide Display 3.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Attach the guide.

Temporarily install the separate type front seatback assembly with the 4 bolts.

Tighten the 4 bolts.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Attach the hook.

Attach the clamp.

Attach the claw.

Connect the connector.

Attach the hook.

Hide Display 82192 4.INSTALL FRONT NO. 1 SEAT WIRE LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202208,_58,_078601,_0396271,RM100000001IGPM_05_0078,202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0078,

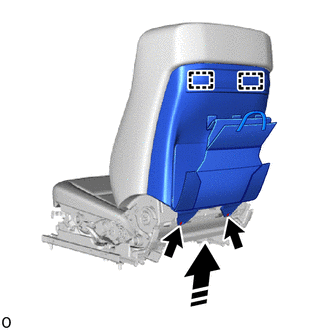

Hide Display 71705G 5.INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH

0,0 0,0 false

Install in this Direction

Attach the hook and install the front seatback board sub-assembly LH as shown in the illustration.

Install the 2 screws.

Attach the band.

Install the 3 clips.

Hide Display 71812T 6.INSTALL FRONT SEAT CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202208,_58,_078601,_0396271,RM100000001IGPM_05_0061,202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0061,

Hide Display 71862K 7.INSTALL FRONT SEAT INNER CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REASSEMBLY201906,202208,_58,_078601,_0396271,RM100000001IGPM_05_0057,202208,999999,_58,_078601,_0396271,RM1000000024I2D_05_0057,

Hide Display 8.INSTALL FRONT SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>INSTALLATION201906,999999,_58,_078601,_0396271,RM100000001IGPO,

Hide Display 9.PERFORM DIAGNOSTIC SYSTEM CHECK

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 10.CHECK SRS WARNING LIGHT

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 11.PERFORM SYSTEM INITIALIZATION AND CALIBRATION

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for Power Seat)>REMOVAL201906,999999,_58,_079257,_0396732,RM100000001IJM7,
