RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0396515 REAR EVAPORATOR TEMPERATURE SENSOR(for Rear Air Conditioning System) A

HEATING / AIR CONDITIONING REAR EVAPORATOR TEMPERATURE SENSOR(for Rear Air Conditioning System) REMOVAL

PROCEDURE

Hide Display 87030 1.REMOVE AIR CONDITIONING BLOWER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>REMOVAL201906,202310,_58,_079316,_0396511,RM100000001IHUE,202310,999999,_58,_079316,_0396511,RM100000002H4PM,

Hide Display 87220 2.REMOVE AIR DUCT ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>DISASSEMBLY201906,999999,_58,_079316,_0396511,RM100000001IHUC_02_0001,

Hide Display 87212C 3.REMOVE REAR AIR DUCT

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>DISASSEMBLY201906,999999,_58,_079316,_0396511,RM100000001IHUC_02_0002,

Hide Display 88710H 4.REMOVE AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>DISASSEMBLY201906,999999,_58,_079316,_0396511,RM100000001IHUC_02_0008,

Hide Display 87107B 5.REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>DISASSEMBLY201906,999999,_58,_079316,_0396511,RM100000001IHUC_02_0011,

Hide Display 6.REMOVE WIRE HARNESS

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>DISASSEMBLY201906,999999,_58,_079316,_0396511,RM100000001IHUC_02_0009,

Hide Display 88501R 7.REMOVE REAR EVAPORATOR SUB-ASSEMBLY

Disconnect the 2 connectors.

Detach the clamp.

Detach the claw and remove the plate.

Remove the grommet.

Using a 4 mm hexagon socket wrench, remove the 2 bolts and connector tube.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

Remove the 12 screws.

Detach the claw and guide and then remove the heater case LH.

0,0 0,0 false

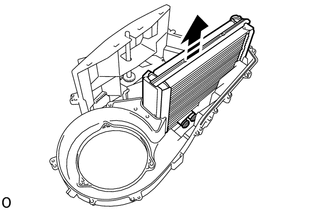

Remove in this Direction

Remove the rear evaporator sub-assembly in the direction indicated by the arrow as shown in the illustration.

Remove the 2 O-rings from the rear evaporator sub-assembly.

NOTICE:: ·

Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

·

Do not reuse the removed O-ring.

Hide Display 88605C 8.REMOVE NO. 2 AIR CONDITIONING HARNESS ASSEMBLY (REAR EVAPORATOR TEMPERATURE SENSOR)

HINT:: If damaged during removal, replace the part with a new one.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the No. 2 air conditioning harness assembly (rear evaporator temperature sensor) in the direction indicated by the arrow as shown in the illustration.
