HEATING / AIR CONDITIONING REAR BLOWER MOTOR(for Rear Air Conditioning System) INSTALLATION
PROCEDURE
87103D
1.INSTALL REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY
a.
0,0 0,0
false
|

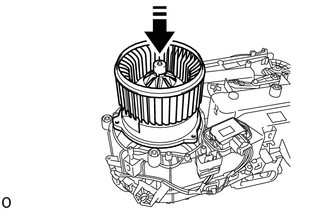

Install in this Direction |
Install the rear blower with fan motor sub-assembly in the direction indicated by the arrow as shown in the illustration.
b.

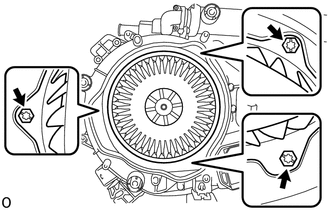

Install the 3 screws.
c.

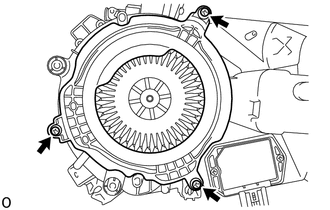

Install the plate with the 3 screws.
d.

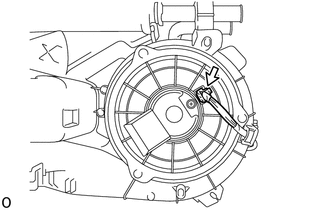

Connect the connector.
87212C
2.INSTALL REAR AIR DUCT
87030
3.INSTALL AIR CONDITIONING BLOWER ASSEMBLY
