REAR BLOWER MOTOR(for Rear Air Conditioning System)
A
HEATING / AIR CONDITIONING REAR BLOWER MOTOR(for Rear Air Conditioning System) REMOVAL
PROCEDURE
87030
1.REMOVE AIR CONDITIONING BLOWER ASSEMBLY
87212C
2.REMOVE REAR AIR DUCT
87103D
3.REMOVE REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY
a.
Disconnect the connector.
b.
Remove the 3 screws and plate.
c.
Remove the 3 screws.
d.
0,0 0,0
false
|

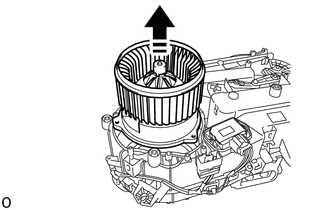

Remove in this Direction |
Remove the rear blower with fan motor sub-assembly in the direction indicated by the arrow as shown in the illustration.
