THEFT DETERRENT / KEYLESS ENTRY ELECTRICAL KEY OSCILLATOR(for Outside Luggage Compartment) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

If the bumper is damaged, there is a possibility that the installation area of the blind spot monitor sensor may be deformed and the blind spot monitor system may not operate correctly, so visually inspect the blind spot monitor sensor installation area (frame, stud bolt) to make sure it is not dented or bent.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>BLIND SPOT MONITOR SENSOR>ADJUSTMENT201906,202208,_56,_079315,_0385745,RM100000001IN05_01_0003,202208,999999,_56,_079315,_0385745,RM1000000024I1U_01_0004,

·

If the visual inspection finds a problem, check the installation condition of the blind spot monitor sensor, and adjust the installation position of the blind spot monitor sensor as necessary.

Click here

Hide Display 1.REMOVE REAR BUMPER ASSEMBLY

Hide Display 89997 2.REMOVE ELECTRICAL KEY ANTENNA

0,0 0,0 false

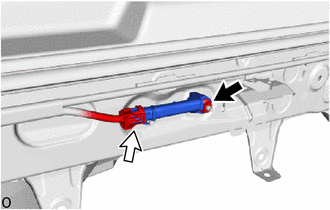

	Nut
	Connector

Disconnect the connector.

Remove the nut.

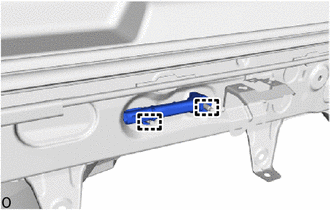

Detach the guide and remove the electrical key antenna.
