PARK ASSIST / MONITORING  PANORAMIC VIEW MONITOR SYSTEM  "CHK" message(s) are displayed on the SIGNAL CHECK screen.


DESCRIPTION

On the Signal Check screen, it is possible to check if the signals sent to the parking assist ECU are normal.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>DIAGNOSIS SYSTEM

HINT:
·

On the Signal Check screen, "OK" (blue) is displayed for items with a normal inspection result or input state.

·

On the Signal Check screen, "CHK" (red) is displayed for items with an abnormal inspection result or input state.

·

Displayed items may differ depending on vehicle specifications.



Item Signal Input Method Detail DTC Output when Abnormal Result is Displayed Signal Receiver
CAN CAN communication CAN communication signal DTC is output Related ECUs
CAMERA SW Vehicle wire harness Panoramic view monitor switch signal input state DTC is not output Panoramic view monitor switch

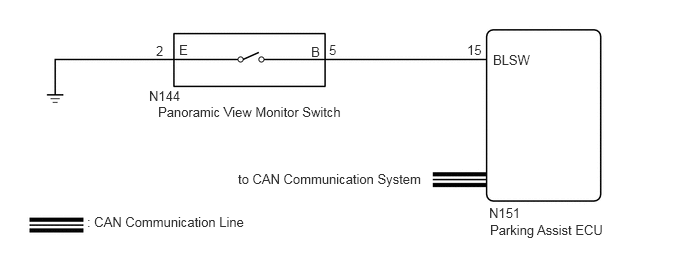

WIRING DIAGRAM

E409481E02
0.906,2.229 2.781,2.448 1.875,0.219 10 false : CAN Communication Line 5.094,2.135 5.542,2.323 0.448,0.188 10 false N151 5.104,2.313 6.99,2.563 1.885,0.25 10 false Parking Assist ECU 4.865,0.438 5.115,0.604 0.25,0.167 10 false 15 5.135,0.542 5.552,0.708 0.417,0.167 10 false BLSW 1.552,0.917 2.292,1.177 0.74,0.26 10 false N144 1.646,1.083 4.344,1.875 2.698,0.792 10 false Panoramic View Monitor Switch 1.625,0.448 2.021,0.813 0.396,0.365 10 false 2 3.427,0.438 4.115,0.698 0.688,0.26 10 false 5 1.865,0.438 2.031,0.604 0.167,0.167 10 false E 3.24,0.458 3.583,0.635 0.344,0.177 10 false B 2.479,1.781 4.521,1.979 2.042,0.198 10 false to CAN Communication System

CAUTION / NOTICE / HINT

NOTICE:
·

When the "!" mark is displayed on the multi-display after the cable is disconnected from the negative (-) battery terminal, correct the steering angle neutral point.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>INITIALIZATION

·

Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the panoramic view monitor system may be needed.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>CALIBRATION



PROCEDURE

1.CHECK DISPLAY CHECK MODE
a.
E409396

Check which items display on the signal check screen.


Result:
Result Proceed to
"CAMERA SW" displays "CHK" (red) A
"CAN" displays "CHK" (red) B



A

2.CHECK HARNESS AND CONNECTOR (PANORAMIC VIEW MONITOR SWITCH - PARKING ASSIST ECU AND BODY GROUND)

B

GO TO CAN COMMUNICATION SYSTEM

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING


2.CHECK HARNESS AND CONNECTOR (PANORAMIC VIEW MONITOR SWITCH - PARKING ASSIST ECU AND BODY GROUND)
a.

Disconnect the N144 panoramic view monitor switch connector.


b.

Disconnect the N151 parking assist ECU connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N144-5 (B) - N151-15 (BLSW) Always Below 1 Ω
N144-2 (E) - Body ground Always Below 1 Ω
N144-5 (B) or N151-15 (BLSW) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.INSPECT PANORAMIC VIEW MONITOR SWITCH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
