POWER ASSIST SYSTEMS VANE PUMP(for 7GR-FKS(w/o Variable Flow Control Solenoid Valve)) REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: ·

When using a vise, do not overtighten it.

·

When installing the parts indicated by arrows, coat them with power steering fluid (See page Steering>POWER ASSIST SYSTEMS>VANE PUMP (for 7GR-FKS(w/o Variable Flow Control Solenoid Valve))>COMPONENTS201902,999999,_55,_078944,_0389111,RM100000001H5X9,).

Hide Display 1.REMOVE FRONT WHEEL RH

Hide Display 11209 2.REMOVE V-BANK COVER SUB-ASSEMBLY (w/ Cover)

Hide Display 53106B 3.REMOVE RADIATOR COVER SUB-ASSEMBLY

for Wagon:

except Wagon:

Hide Display 17751 4.REMOVE NO. 1 AIR CLEANER INLET

Hide Display 5.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Hide Display 16361A 6.REMOVE FAN AND GENERATOR V BELT

Hide Display 7.DISCONNECT WIRE HARNESS BRACKET

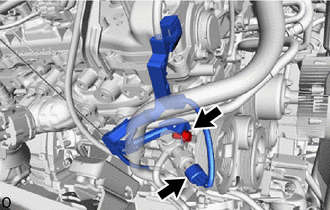

Disconnect the connector.

Remove the bolt and disconnect the wire harness bracket.

Hide Display 44348D 8.DISCONNECT NO. 2 OIL RESERVOIR TO PUMP HOSE

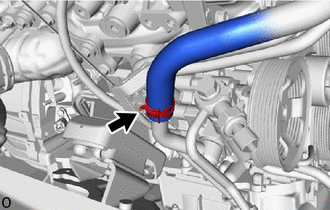

Slide the clip and disconnect the No. 2 oil reservoir to pump hose from the vane pump assembly.

Drain the power steering fluid.

Hide Display 44410 9.DISCONNECT PRESSURE FEED TUBE ASSEMBLY

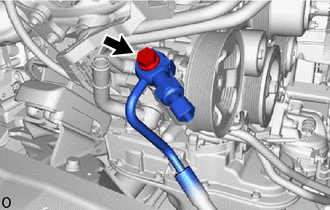

Remove the union bolt and disconnect the pressure feed tube assembly.

Remove the gasket.

Hide Display 44310 10.REMOVE VANE PUMP ASSEMBLY

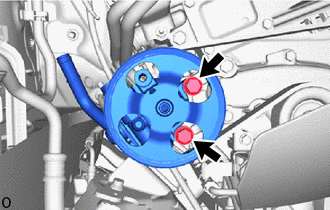

Remove the 2 bolts and vane pump assembly.
