MAINTENANCE  7GR-FKS DRIVE BELT  REMOVAL


PROCEDURE

Hide 51405A 1.REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

a.

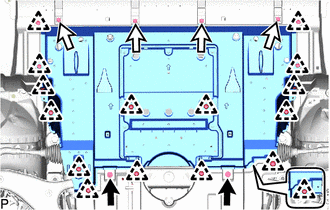

A443702C01
0,0 0,0 false
V100135

Bolt A
V100136

Bolt B


w/ No. 2 Engine Under Cover Sub-assembly:

i.

Remove the 16 clips, 6 bolts and No. 1 engine under cover sub-assembly.



b.

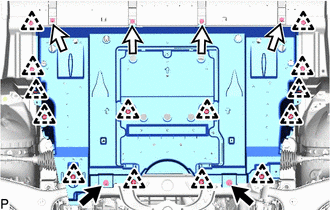

A443703C01
0,0 0,0 false
V100135

Bolt A
V100136

Bolt B


w/o No. 2 Engine Under Cover Sub-assembly:

i.

Remove the 14 clips, 6 bolts and No. 1 engine under cover sub-assembly.



Hide 16361A 2.REMOVE FAN AND GENERATOR V BELT

a.

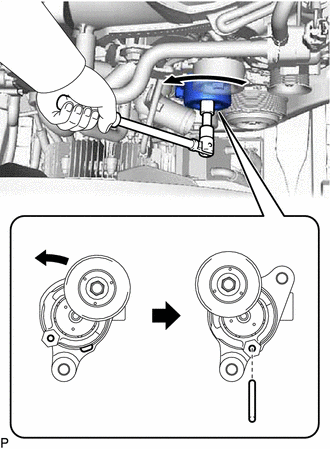

A436686

While turning the V-ribbed belt tensioner counterclockwise, align the service hole for the V-ribbed belt tensioner and the belt tensioner fixing position, and then insert a bar of 6 mm (0.236 in.) into the service hole to fix the V-ribbed belt tensioner in place.

HINT:

The pulley bolt for the V-ribbed belt tensioner has a left-hand thread.



b.

Remove the fan and generator V belt.
