LIGHTING (EXT)  HEIGHT CONTROL SENSOR  INSTALLATION


PROCEDURE

Hide 89408C 1.INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

NOTICE:

If the rear height control sensor sub-assembly LH has been dropped, replace it with a new one.


a.

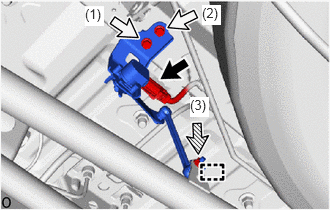

B544999C02
2.104,0.052 2.302,0.26 0.198,0.208 10 true (2) 0.885,0.063 1.083,0.271 0.198,0.208 10 true (1) 1.979,1.01 2.177,1.219 0.198,0.208 10 true (3)
V100135

Connector
V100136

Bolt
V100137

Nut


Attach the guide.


b.

Temporarily install the rear height control sensor sub-assembly LH with the 2 bolts and new nut.

CAUTION:

Do not reuse the nut.



c.

Tighten the 2 bolts and nut in the order shown in the illustration.

Torque:
for Bolt : 13.5 N*m (138 kgf*cm, 10 ft.*lbf)
for Nut : 8.0 N*m (82 kgf*cm, 71 in.*lbf)


d.

Connect the connector.


Hide 58399D 2.INSTALL NO. 2 FLOOR UNDER COVER

a.

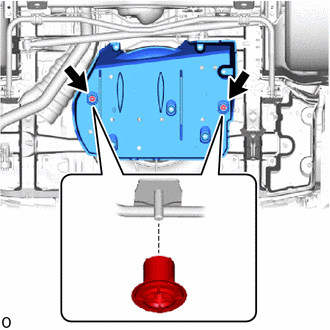

B544998

Press the clip onto the vehicle stud portion, and install the No. 2 floor under cover.


b.
B544996

Install the 6 bolts.
