LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for Halogen Headlight)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 1.INSTALL HEADLIGHT ASSEMBLY LH

a.

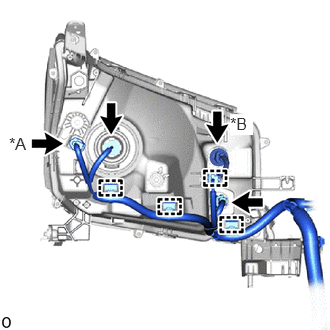

E413155C01
0.094,1.396 0.333,1.615 0.24,0.219 12 false *A 2.396,1.188 2.635,1.406 0.24,0.219 12 true *B
*A w/ Headlight Leveling
*B w/ Clearance Light


Connect each connector and attach the wire harness clamp.


b.

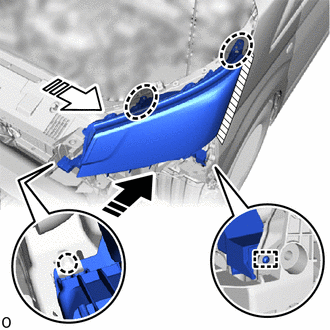

E413153
0,0 0,0 false
V113146

Place Hands Here
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Attach the claw to set the headlight assembly LH in the direction indicated by the arrow (1) to the vehicle.


c.

Slide the headlight assembly LH in the direction indicated by the arrow (2) and attach the guide.


d.

Place your hand on the 2 brackets of the headlight assembly LH and set them on the screw seats.

NOTICE:

Be careful not to break the bracket.



e.

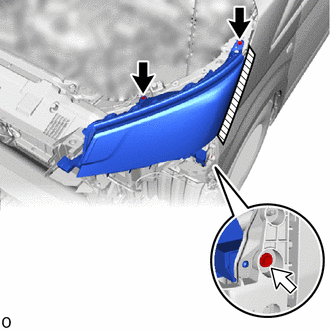

E413151C01
0,0 0,0 false
V100135

Screw
V100136

Bolt
V100155

Protective Tape


Install the bolt and 2 screws.

Torque:
for Bolt : 5.4 N*m (55 kgf*cm, 48 in.*lbf)


f.

Remove the protective tape.


g.

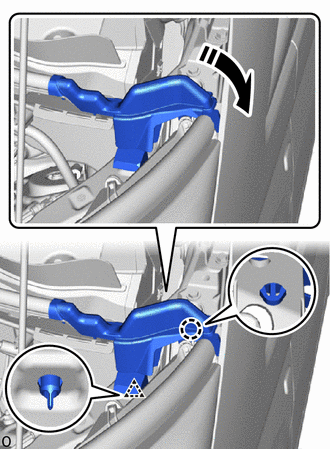

B544925
0,0 0,0 false
V113147

Install in this Direction


Attach the clip and claw to return the fender apron mudguard seal sub-assembly LH to its original position.
