RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396101 REAR LIGHT ASSEMBLY A

LIGHTING (EXT)  REAR LIGHT ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 81564 1.INSTALL REAR COMBINATION LIGHT BODY GASKET LH

a.
B544908

Install a new rear combination light body gasket LH.


Hide 81584D 2.INSTALL REAR LIGHT GASKET

a.
B544957

Install 2 new rear light gaskets.


Hide 3.INSTALL REAR LIGHT ASSEMBLY LH

a.

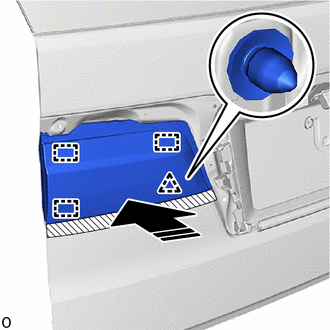

B544906C01
0,0 0,0 false
V113147

Install in this Direction


Attach the pin and clip as shown in the illustration.


b.
B544904

Install the rear light assembly LH with 3 nuts.

Torque:
3.2 N*m (33 kgf*cm, 28 in.*lbf)


c.

for RH Side:

i.

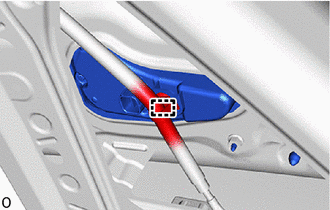

B552277

Attach the clamp.



d.
B544903

Connect the connector.


e.

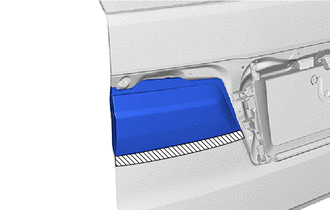

B544956C02
0,0 0,0 false
V100155

Protective Tape


Remove the protective tape.
