LIGHTING (EXT) REAR LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.

Hide Display 76801 1.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Hide Display 2.REMOVE REAR LIGHT ASSEMBLY LH

NOTICE:: If the rear light assembly LH has been removed, replace the rear light gasket and rear combination light body gasket LH with a new one.

0,0 0,0 false

Protective Tape

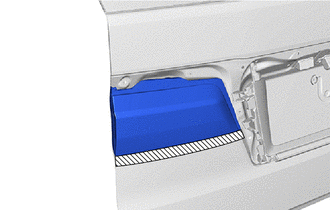

Apply protective tape as shown in the illustration.

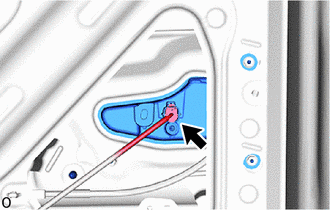

Disconnect the connector.

for RH Side:

0,0 0,0 false

Protective Tape

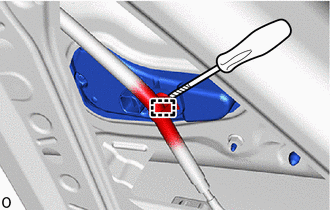

Using a thin-bladed screwdriver, detach the clamp.

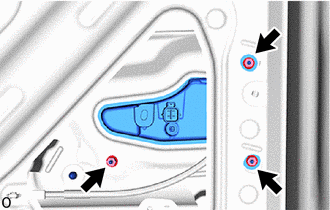

Remove the 3 nuts.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

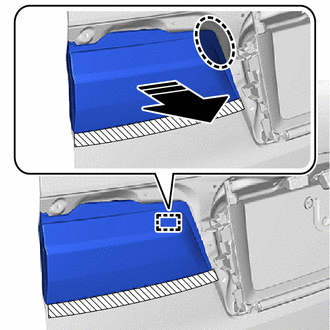

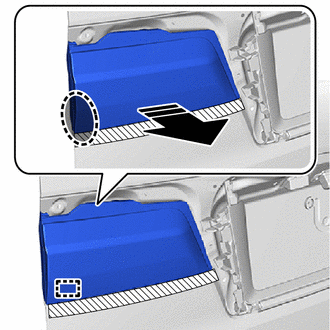

Place your hand at the position shown in the illustration and pull in the removal direction and detach the pin.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

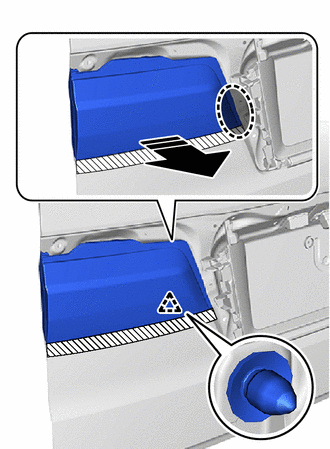

Place your hand at the position shown in the illustration and pull in the removal direction and detach the clip.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

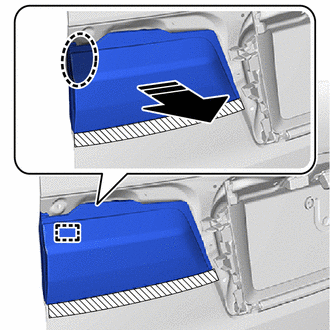

Place your hand at the position shown in the illustration and pull in the removal direction and detach the pin.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the removal direction and detach the pin and remove the rear light assembly LH.

Hide Display 81584D 3.REMOVE REAR LIGHT GASKET

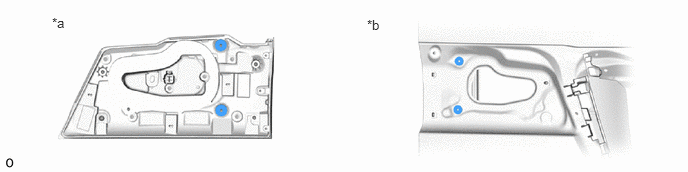

Remove the 2 rear light gaskets.

0.542,0.156 0.854,0.313 0.313,0.156 10 false *a 3.823,0.177 4.135,0.333 0.313,0.156 10 false *b

When removing from the rear light assembly LH

When removing from the vehicle

Hide Display 81564 4.REMOVE REAR COMBINATION LIGHT BODY GASKET LH

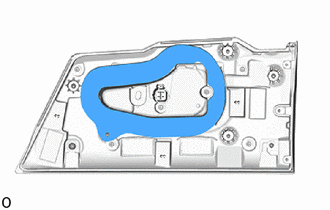

Remove the rear combination light body gasket LH.
