RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396099 FOG LIGHT ASSEMBLY(for LED Fog Light) A

LIGHTING (EXT) FOG LIGHT ASSEMBLY(for LED Fog Light) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

Hide Display 1.INSTALL FOG LIGHT ASSEMBLY LH

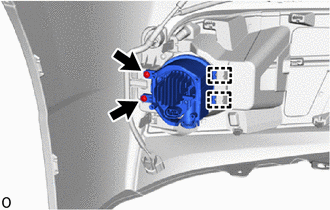

Attach the guide.

Install the fog light assembly LH with the 2 screws.

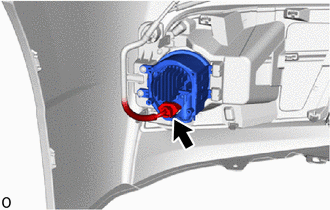

Connect the connector.

Hide Display 2.INSTALL FRONT BUMPER ASSEMBLY

Hide Display 3.ADJUST FOG LIGHT AIMING

Hide Display 86790B 4.ADJUST FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
