RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381907 SFI SYSTEM C

7GR-FKS ENGINE CONTROL  SFI SYSTEM  P061512  Starter Relay Circuit Short to Battery


MONITOR DESCRIPTION

While the engine is being cranked, positive battery voltage is applied to terminal STA of the ECM. If the ECM detects the starter control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The ECM then illuminates the MIL and stores the DTC.

This monitor runs when the vehicle is driven at 20 km/h (12.43 mph) or more for 20 seconds or more.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P061512 Starter Relay Circuit Short to Battery All of the following conditions are met, and battery voltage of 10.5 V or higher is applied to the ECM for 20 seconds (1 trip detection logic):

(a) The vehicle speed is 20 km/h (12.43 mph) or more.

(b) The engine speed is 1000 rpm or higher.

(c) The STA signal is on.


·

STARTER relay

·

Park/neutral position switch assembly (for automatic transmission models)

·

Clutch start switch assembly (for manual transmission models)

·

STARTER relay circuit

·

ECM


Comes on DTC stored SAE Code: P0617

MONITOR STRATEGY

Frequency of Operation Continuous

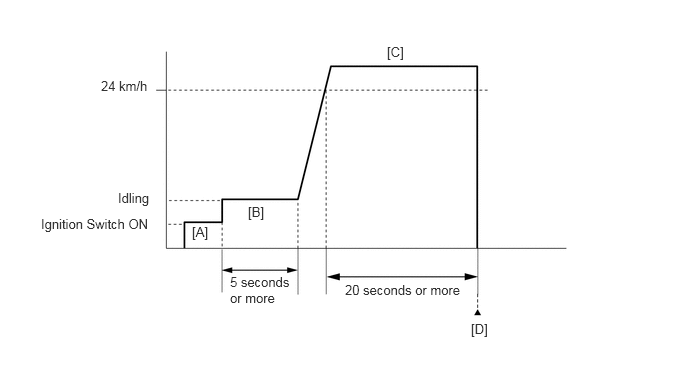

CONFIRMATION DRIVING PATTERN

A428845E04
1.229,1.979 1.604,2.156 0.375,0.177 10 false Idling 0.427,2.25 1.823,2.583 1.396,0.333 10 false Ignition Switch ON 1.052,0.813 1.646,1.042 0.594,0.229 10 false 24 km/h 2.396,2.854 3.083,3.167 0.688,0.313 10 false 5 seconds or more 3.594,2.938 4.865,3.104 1.271,0.167 10 false 20 seconds or more 2,2.333 2.406,2.521 0.406,0.188 10 false [A] 2.583,2.125 2.792,2.302 0.208,0.177 10 false [B] 4.031,0.458 4.26,0.625 0.229,0.167 10 false [C] 4.906,3.344 5.135,3.51 0.229,0.167 10 false [D]

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Start the engine.

9.

Idle the engine for 5 seconds or more [B].

10.

Drive the vehicle at a speed of 24 km/h (15 mph) or more for 20 seconds or more [C].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


11.

Enter the following menus: Powertrain / Engine / Trouble Codes [D].

12.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



13.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

14.

Input the DTC: P061512.

15.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

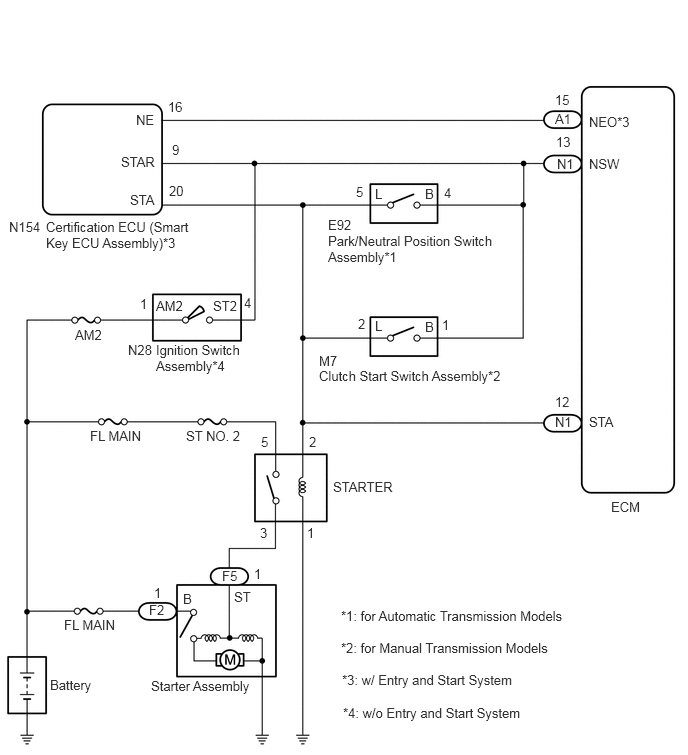

WIRING DIAGRAM

A446199E01
3.469,4.99 4.177,5.208 0.708,0.219 10 false STARTER 6.135,1.625 6.594,1.823 0.458,0.198 10 false NSW 6.365,5.198 6.823,5.396 0.458,0.198 10 false ECM 0.521,7.052 1.135,7.281 0.615,0.229 10 false Battery 1.573,7.063 2.76,7.51 1.188,0.448 10 false Starter Assembly 0.938,4.458 1.646,4.677 0.708,0.219 10 false FL MAIN 0.781,3.406 1.49,3.625 0.708,0.219 10 false AM2 1.625,3.563 2.552,3.938 0.927,0.375 10 false Ignition Switch Assembly*4 3.323,3.833 5.417,4.198 2.094,0.365 10 false Clutch Start Switch Assembly*2 6.135,4.313 6.594,4.51 0.458,0.198 10 false STA 3.552,6.333 6.208,6.563 2.656,0.229 10 false *1: for Automatic Transmission Models 3.552,6.667 6.083,6.906 2.531,0.24 10 false *2: for Manual Transmission Models 5.792,1.396 6.104,1.594 0.313,0.198 10 false 13 5.781,4.104 6.094,4.302 0.313,0.198 10 false 12 1.552,6.271 2.26,6.49 0.708,0.219 10 false F2 2.313,5.917 3.021,6.135 0.708,0.219 10 false F5 1.604,6.094 1.917,6.292 0.313,0.198 10 false 1 2.646,5.896 2.958,6.094 0.313,0.198 10 false 1 3.198,5.469 3.51,5.667 0.313,0.198 10 false 1 2.708,5.469 3.021,5.667 0.313,0.198 10 false 3 2.719,4.521 3.031,4.719 0.313,0.198 10 false 5 3.219,4.521 3.531,4.719 0.313,0.198 10 false 2 1.938,4.458 2.646,4.677 0.708,0.219 10 false ST NO. 2 1.625,3.104 2.333,3.323 0.708,0.219 10 false AM2 3.417,2.427 5.198,2.896 1.781,0.469 10 false Park/Neutral Position Switch Assembly*1 2.219,3.104 2.531,3.406 0.313,0.302 10 false ST2 1.458,3.083 1.771,3.281 0.313,0.198 10 false 1 2.542,3.073 2.854,3.271 0.313,0.198 10 false 4 5.781,4.313 6.094,4.51 0.313,0.198 10 false N1 3.708,1.917 4.021,2.115 0.313,0.198 10 false 5 3.906,1.938 4.219,2.135 0.313,0.198 10 false L 4.427,1.938 4.74,2.135 0.313,0.198 10 false B 4.625,1.927 4.938,2.125 0.313,0.198 10 false 4 3.729,3.292 4.042,3.49 0.313,0.198 10 false 2 4.604,3.302 4.917,3.5 0.313,0.198 10 false 1 3.906,3.313 4.219,3.51 0.313,0.198 10 false L 4.427,3.323 4.74,3.521 0.313,0.198 10 false B 3.417,2.26 3.729,2.458 0.313,0.198 10 false E92 3.323,3.677 3.635,3.875 0.313,0.198 10 false M7 1.333,3.563 2.042,3.781 0.708,0.219 10 false N28 1.906,6.156 2.615,6.375 0.708,0.219 10 false B 2.438,6.135 3.146,6.354 0.708,0.219 10 false ST 0.667,6.427 1.375,6.646 0.708,0.219 10 false FL MAIN 3.563,7 5.74,7.188 2.177,0.188 10 false *3: w/ Entry and Start System 3.573,7.344 5.75,7.531 2.177,0.188 10 false *4: w/o Entry and Start System 0.479,2.281 1.979,2.667 1.5,0.385 10 false Certification ECU (Smart Key ECU Assembly)*3 6.135,1.188 6.594,1.385 0.458,0.198 10 false NEO*3 1.417,1.167 1.729,1.365 0.313,0.198 10 false NE 1.26,1.604 1.719,1.802 0.458,0.198 10 false STAR 1.354,2 1.813,2.198 0.458,0.198 10 false STA 5.781,0.958 6.094,1.156 0.313,0.198 10 false 15 5.802,1.625 6.115,1.823 0.313,0.198 10 false N1 5.781,1.156 6.094,1.354 0.313,0.198 10 false A1 1.75,1.031 2.063,1.229 0.313,0.198 10 false 16 1.792,1.479 2.104,1.677 0.313,0.198 10 false 9 1.76,1.906 2.073,2.104 0.313,0.198 10 false 20 0.094,2.281 0.802,2.5 0.708,0.219 10 false N154

CAUTION / NOTICE / HINT

HINT:

Read Freeze Frame Data using the GTS. Freeze Frame Data records the engine condition when malfunctions are detected. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.READ VALUE USING GTS (STARTER SW)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / Starter SW.

Powertrain > Engine > Data List
Tester Display
Starter SW
50003 372 11

e.

According to the display on the GTS, read the Data List.

Standard:
Condition Starter SW
Ignition switch ON OFF



f.

According to the display on the GTS, read the Data List while the vehicle is being driven with an engine speed of 1000 rpm or more at a vehicle speed of 20 km/h (12.43 mph) or more.

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


Standard:
Condition Starter SW
Driving at 20 km/h (12.43 mph) or more (engine speed 1000 rpm or more) OFF



HINT:

If the result of either of the above is not as specified, proceed to the next step with the ignition switch to ON, GTS connected and Data List item "Starter SW" selected.


Result:
Result Proceed to
OK A
NG B


HINT:

If the starter assembly operates continuously when the ignition switch is turned to ON, proceed to the next step without reading the Data List item "Starter SW".



A

CHECK FOR INTERMITTENT PROBLEMS

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


B

2.INSPECT STARTER RELAY (CHECK FOR SHORT CIRCUIT)
2.INSPECT STARTER RELAY (CHECK FOR SHORT CIRCUIT)
a.

Enter the following menus: Powertrain / Engine / Data List / Starter SW.

Powertrain > Engine > Data List
Tester Display
Starter SW
50003 372 11

b.

Remove the STARTER relay from the No. 1 engine room relay block and junction block assembly.


c.

According to the display on the GTS, read the Data List.

Result:
Result Proceed to
The Data List item "Starter SW" does not change from ON A
The Data List item "Starter SW" changes from ON to OFF B


HINT:
·

When the result of the above inspection is "The Data List item "Starter SW" does not change from ON", the STARTER relay is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF STARTER RELAY)

B

REPLACE STARTER RELAY ASSEMBLY

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF STARTER RELAY)
A440806C01
0.229,0.229 0.542,0.427 0.313,0.198 10 false *1 1.927,0.188 2.24,0.385 0.313,0.198 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 STARTER Relay


HINT:

The purpose of this step is to check for STARTER relay terminal voltage under abnormal conditions.


a.

Remove the STARTER relay from the No. 1 engine room relay block and junction block assembly.


b.

Turn the ignition switch to ON.


c.

Measure the voltage between STARTER relay terminal 2 and body ground.

HINT:
·

Make a note of the measured voltage as it will be necessary for the inspecting the change in voltage in the next step. As the next step should be conducted under the same conditions, keep the ignition switch ON and do not install the STARTER relay.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.

·

If any voltage was measured with the ignition switch ON, one of the following malfunctions is suspected:

-

Short to +B in the circuit of a connected ECU or the switch.

-

Short to +B in the wire harness.





Result:
Result Proceed to
NEXT (for Automatic Transmission Models) A
NEXT (for Manual Transmission Models) B



A

4.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY (CHECK FOR SHORT CIRCUIT)

B

7.INSPECT CLUTCH START SWITCH ASSEMBLY (CHECK FOR SHORT CIRCUIT)
4.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY (CHECK FOR SHORT CIRCUIT)
A440806C01
0.229,0.229 0.542,0.427 0.313,0.198 10 false *1 1.927,0.188 2.24,0.385 0.313,0.198 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 STARTER Relay


a.

Disconnect the park/neutral position switch assembly connector.


b.

Measure the voltage between STARTER relay terminal 2 and body ground and compare it to the voltage measured in the previous step.

Result:
Result Proceed to
The voltage between STARTER relay terminal 2 and body ground does not change when the connector is disconnected. A
The voltage between STARTER relay terminal 2 and body ground changes when the connector is disconnected. B


HINT:
·

If the voltage is the same before and after disconnecting the connector, the park/neutral position switch assembly is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

5.INSPECT ECM (CHECK FOR SHORT CIRCUIT)

B

REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>PARK / NEUTRAL POSITION SWITCH>REMOVAL


5.INSPECT ECM (CHECK FOR SHORT CIRCUIT)
A440806C01
0.229,0.229 0.542,0.427 0.313,0.198 10 false *1 1.927,0.188 2.24,0.385 0.313,0.198 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 STARTER Relay


a.

Disconnect the ECM connector.


b.

Measure the voltage between STARTER relay terminal 2 and body ground and compare it to the voltage measured in the previous step.

Result:
Result Proceed to
The voltage between STARTER relay terminal 2 and body ground does not change when the connector is disconnected. (w/ Entry and Start System) A
The voltage between STARTER relay terminal 2 and body ground does not change when the connector is disconnected. (w/o Entry and Start System) B
The voltage between STARTER relay terminal 2 and body ground changes when the connector is disconnected. C


HINT:
·

If the voltage is the same before and after disconnecting the connector, the ECM is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

6.INSPECT CERTIFICATION ECU (CHECK FOR SHORT CIRCUIT)

B

REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH ASSEMBLY - STARTER RELAY)

C

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL


6.INSPECT CERTIFICATION ECU (CHECK FOR SHORT CIRCUIT)
A440806C01
0.229,0.229 0.542,0.427 0.313,0.198 10 false *1 1.927,0.188 2.24,0.385 0.313,0.198 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 STARTER Relay


a.

Disconnect the certification ECU connector.


b.

Measure the voltage between STARTER relay terminal 2 and body ground and compare it to the voltage measured in the previous step.

Result:
Result Proceed to
The voltage between STARTER relay terminal 2 and body ground does not change when the connector is disconnected. A
The voltage between STARTER relay terminal 2 and body ground changes when the connector is disconnected. B


HINT:
·

If the voltage is the same before and after disconnecting the connector, the certification ECU is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH ASSEMBLY - CERTIFICATION ECU - STARTER RELAY)

B

REPLACE CERTIFICATION ECU

7.INSPECT CLUTCH START SWITCH ASSEMBLY (CHECK FOR SHORT CIRCUIT)
A440806C01
0.229,0.229 0.542,0.427 0.313,0.198 10 false *1 1.927,0.188 2.24,0.385 0.313,0.198 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 STARTER Relay


a.

Disconnect the clutch start switch assembly connector.


b.

Measure the voltage between STARTER relay terminal 2 and body ground and compare it to the voltage measured in the previous step.

Result:
Result Proceed to
The voltage between STARTER relay terminal 2 and body ground does not change when the connector is disconnected. A
The voltage between STARTER relay terminal 2 and body ground changes when the connector is disconnected. B


HINT:
·

If the voltage is the same before and after disconnecting the connector, the clutch start switch assembly is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

8.INSPECT ECM (CHECK FOR SHORT CIRCUIT)

B

REPLACE CLUTCH START SWITCH ASSEMBLY

Click hereDrivetrain>CLUTCH>CLUTCH PEDAL SWITCH>REMOVAL


8.INSPECT ECM (CHECK FOR SHORT CIRCUIT)
A440806C01
0.229,0.229 0.542,0.427 0.313,0.198 10 false *1 1.927,0.188 2.24,0.385 0.313,0.198 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 STARTER Relay


a.

Disconnect the ECM connector.


b.

Measure the voltage between STARTER relay terminal 2 and body ground and compare it to the voltage measured in the previous step.

Result:
Result Proceed to
The voltage between STARTER relay terminal 2 and body ground does not change when the connector is disconnected. A
The voltage between STARTER relay terminal 2 and body ground changes when the connector is disconnected. B


HINT:
·

If the voltage is the same before and after disconnecting the connector, the ECM is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - CLUTCH START SWITCH ASSEMBLY - STARTER RELAY)

B

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL
