RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0396045 REAR CENTER SEAT OUTER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side) A

SEAT BELT  REAR CENTER SEAT OUTER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 73380 1.INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

a.
B553718

Attach the guide.


b.
B547548

Install the retractor of the rear seat 3 point type belt assembly RH with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


c.
B555841

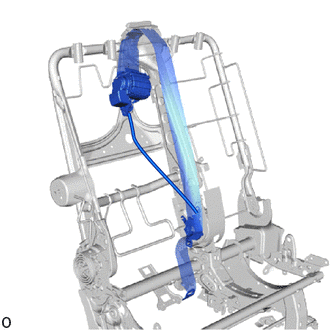

Pass the sensor cable as shown in the illustration.


d.

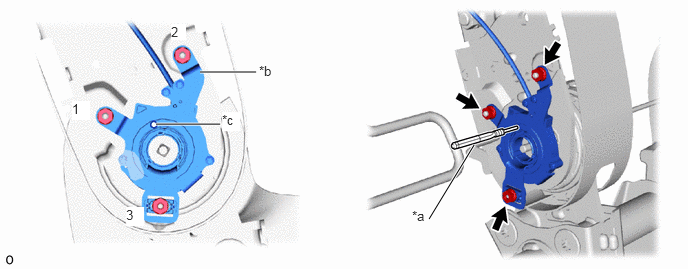

Temporarily install the reclining sensor of the rear seat 3 point type belt assembly RH with the 3 nuts.

B547547C01
1.625,1.292 2.292,1.292 true 2.083,0.75 2.667,0.75 true 4.469,2.281 4.938,1.51 true 4.292,2.167 4.604,2.323 0.313,0.156 10 false *a 2.698,0.656 3.01,0.813 0.313,0.156 10 false *b 2.313,1.167 2.5,1.365 0.188,0.198 10 true *c 0.75,1.052 0.938,1.25 0.188,0.198 10 true 1 1.781,0.25 1.938,0.417 0.156,0.167 10 true 2 1.313,2.156 1.5,2.354 0.188,0.198 10 true 3
*a Pin Punch 3 *b Reclining Sensor
*c Zero Point Alignment Hole - -



e.

Insert pin punch 3 into the zero point alignment hole of the rear seat 3 point type belt assembly RH.


f.

Tighten the 3 nuts in the order shown in the illustration.

Torque:
3.5 N*m (36 kgf*cm, 31 in.*lbf)


g.

Pull out pin punch 3.


h.
B547549

Install the bezel of the rear seat 3 point type belt assembly RH with the 3 screws.


Hide 2.INSTALL REAR NO. 1 SEAT CUSHION SPRING

a.
B554771

Attach the guide and install the rear No. 1 seat cushion spring.
