SEAT BELT  REAR CENTER SEAT OUTER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side)  REMOVAL

1.REMOVE NO. 3 SEAT ASSEMBLY RH

73315B 2.REMOVE REAR NO. 3 SEAT INNER BELT COVER RH

72345V 3.REMOVE NO. 4 SEAT STAND FRAME CAP RH

72057E 4.REMOVE REAR NO. 1 SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH

71848V 5.REMOVE NO. 3 SEAT ADJUSTER COVER CAP RH

73350 6.REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

71834P 7.REMOVE REAR NO. 3 SEAT RECLINING COVER RH SEAT

72525Q 8.REMOVE NO. 3 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

72215C 9.REMOVE NO. 3 SEAT TRACK HANDLE CONTROL LEVER RH

79076P 10.REMOVE NO. 3 SEAT LEG COVER SUB-ASSEMBLY RH

71H75S 11.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER

12.REMOVE REAR SEAT CUSHION ASSEMBLY

71868T 13.REMOVE REAR NO. 1 SEAT INNER CUSHION SHIELD LH

71H67 14.REMOVE REAR NO. 1 SEAT INNER CUSHION SHIELD RH

71396L 15.REMOVE REAR NO. 3 SEAT CUSHION SUPPORT RH

79078B 16.REMOVE NO. 3 SEAT LEG COVER SUB-ASSEMBLY RH

73380 17.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH (ANCHOR)

72848G 18.REMOVE NO. 3 SEAT NO. 1 ARMREST CAP RH

72880G 19.REMOVE RH SEAT NO. 3 SEAT ARMREST ASSEMBLY

73375 20.REMOVE REAR SEAT SHOULDER BELT COVER LH

21.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

71697D 22.REMOVE NO. 3 SEATBACK PROTECTOR RH

71801D 23.REMOVE NO. 3 SEAT RECLINING ADJUSTER COVER SUB-ASSEMBLY RH

73C73 24.REMOVE REAR NO. 3 SEAT NO. 1 SHOULDER BELT COVER RH

25.REMOVE REAR NO. 1 SEAT CUSHION SPRING

a.

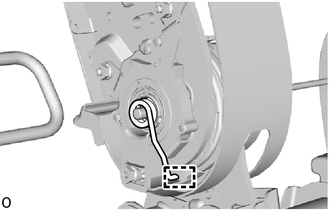

Detach the guide and remove the rear No. 1 seat cushion spring.

73380 26.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

a.

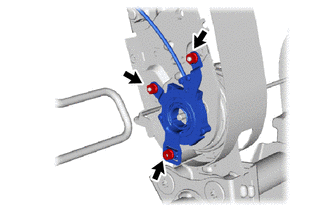

Remove the 3 nuts and reclining sensor of the rear seat 3 point type belt assembly RH.

b.

Remove the 3 screws and bezel of the rear seat 3 point type belt assembly RH.

c.

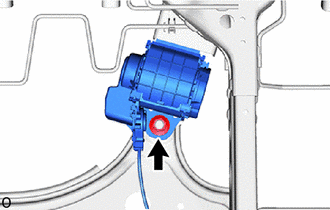

Remove the nut.

d.

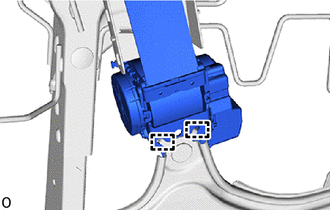

Detach the guide and remove the rear seat 3 point type belt assembly RH.
