SEAT BELT  REAR CENTER SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 73350 1.INSTALL REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

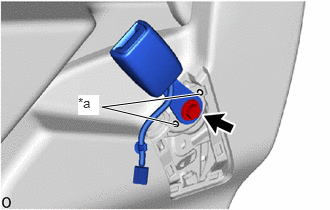

a.
B547488C02
1.844,1.302 1.063,1.115 1.063,1.115 2.083,0.979 true 0.813,0.99 1.031,1.198 0.219,0.208 10 true *a
*a Protruding Part


Install the rear seat center lap type belt assembly with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear seat center lap type belt assembly to overlap the protruding part.



b.
B547486

Attach the clamp.


c.

Connect the connector.
