RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0396044 REAR CENTER SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side) A

SEAT BELT REAR CENTER SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 1.REMOVE NO. 3 SEAT ASSEMBLY RH

Hide Display 71848V 2.REMOVE NO. 3 SEAT ADJUSTER COVER CAP RH

Hide Display 73350 3.REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

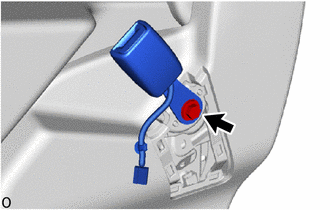

Disconnect the connector.

Detach the clump.

Remove the bolt and rear seat center lap type belt assembly.
