RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0396043 REAR SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side) A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 73380D 1.INSTALL REAR SEAT INNER BELT ASSEMBLY

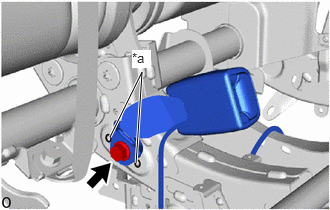

1.146,1.427 1.479,0.75 1.479,0.75 1.417,1.698 true 1.375,0.521 1.573,0.708 0.198,0.188 10 true *a

*a	Protruding Part

Install the rear seat inner belt assembly with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the rear seat inner belt assembly to overlap the protruding part.

Attach the clamp.

Attach the clamp.

1.031,1.115 1.271,0.646 true 0.854,0.979 1.073,1.167 0.219,0.188 10 true *A

*a	w/ Center Headrest

Attach the clamp.

Hide Display 71879G 2.INSTALL NO. 3 SEAT INNER RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0018,

Hide Display 79078B 3.INSTALL NO. 3 SEAT NO. 1 LEG COVER SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0019,

Hide Display 71396L 4.INSTALL NO. 3 SEAT SUPPORT CUSHION REAR RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0040,

Hide Display 71H67 5.INSTALL REAR NO. 1 SEAT INNER CUSHION SHIELD RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0041,

Hide Display 71868T 6.INSTALL REAR NO. 1 SEAT INNER CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0042,

Hide Display 7.INSTALL REAR SEAT CUSHION ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0024,

Hide Display 72620P 8.INSTALL NO. 3 SEAT SLIDE CABLE ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0015,

Hide Display 71H75S 9.INSTALL RH SEAT RECLINING ADJUSTER INSIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0025,

Hide Display 71834P 10.INSTALL RH SEAT REAR NO. 3 SEAT RECLINING COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0001,

Hide Display 73350 11.INSTALL REAR CENTER SEAT LAP TYPE BELT ASSEMBLY (w/ Center Headrest)

Click hereVehicle Interior>SEAT BELT>REAR CENTER SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>INSTALLATION201906,999999,_58,_078602,_0396044,RM100000001IFLI_02_0001,

Hide Display 71848V 12.INSTALL NO. 3 SEAT ADJUSTER COVER CAP RH (w/ Center Headrest)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0003,

Hide Display 79076P 13.INSTALL NO. 3 SEAT LEG COVER SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0026,

Hide Display 72215C 14.INSTALL NO. 3 SEAT TRACK HANDLE CONTROL LEVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0027,

Hide Display 72525Q 15.INSTALL NO. 3 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0029,

Hide Display 72057E 16.INSTALL REAR NO. 1 SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0004,

Hide Display 72345V 17.INSTALL NO. 4 SEAT STAND FRAME CAP RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0005,

Hide Display 73315B 18.INSTALL REAR NO. 3 SEAT INNER BELT COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REASSEMBLY201906,999999,_58,_078601,_0396040,RM100000001IFKY_05_0006,

Hide Display 19.INSTALL REAR NO. 3 SEAT ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>INSTALLATION201906,999999,_58,_078601,_0396040,RM100000001IFL0,

Hide Display 20.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,
