SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 40 Side)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 73390A 1.INSTALL REAR SEAT INNER BELT ASSEMBLY

a.
B547414C01
1.688,1.188 2.333,0.917 2.333,0.917 1.469,0.896 true 2.354,0.792 2.594,0.99 0.24,0.198 10 true *a
*a Protruding Part

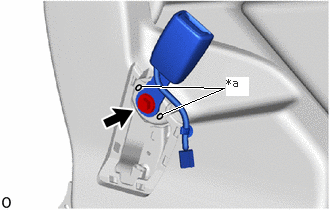

Install the rear seat inner belt assembly with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding part.



b.
B547412

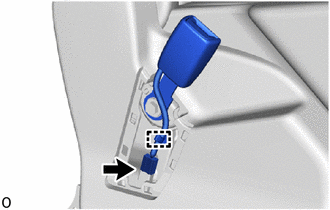

Attach the clamp.


c.

Connect the connector.
