RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0396038 REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 73330K 1.INSTALL REAR 3 PERSONS SEAT LAP TYPE BELT ASSEMBLY RH

a.

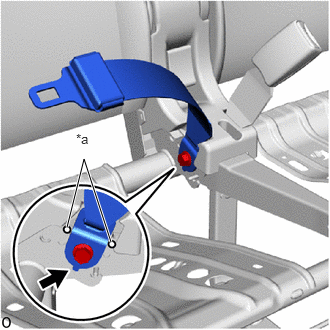

B548067C01
0.698,2.365 0.875,1.656 0.875,1.656 1.156,2.521 true 0.792,1.365 1.083,1.573 0.292,0.208 10 false *a
*a Protruding Part


Install the rear 3 persons seat lap type belt assembly RH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear 3 persons seat lap type belt assembly RH to overlap the protruding part.



b.
B548056C01
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.


Hide 73330K 2.INSTALL REAR 3 PERSONS SEAT LAP TYPE BELT ASSEMBLY RH

a.
B548069C01
0.677,2.323 0.927,1.625 0.927,1.625 1.156,2.51 true 0.875,1.375 1.167,1.583 0.292,0.208 10 true *a
*a Protruding Part


Install the rear 3 persons seat lap type belt assembly RH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear 3 persons seat lap type belt assembly RH to overlap the protruding part.



b.
B548057C01
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.


Hide 73330J 4.INSTALL REAR 3 PERSONS SEAT LAP TYPE BELT ASSEMBLY LH

a.
B548065C01
2.417,2.635 2.698,1.521 2.698,1.521 2.854,2.521 true 2.625,1.24 2.885,1.438 0.26,0.198 10 false *a
*a Protruding Part


Install the rear 3 persons seat lap type belt assembly LH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear 3 persons seat lap type belt assembly LH to overlap the protruding part.



Hide 72525N 8.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

HINT:

Use the same procedure described for the LH side.
