RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0396037 REAR SEAT INNER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

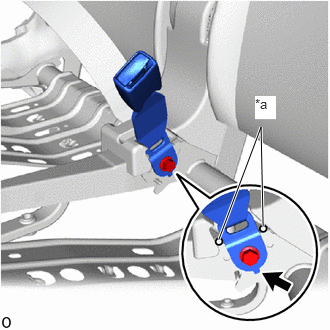

Hide Display 73380S 1.INSTALL REAR 3 PERSONS SEAT BELT ASSEMBLY LH

2.344,2.604 2.573,1.26 2.573,1.26 2.729,2.427 true 2.51,0.948 2.75,1.188 0.24,0.24 10 true *a

*a	Protruding Part

Install the rear 3 persons seat belt assembly LH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear 3 persons seat belt assembly LH to overlap the protruding part.

0,0 0,0 false

Fastening Tape

Attach the fastening tape.

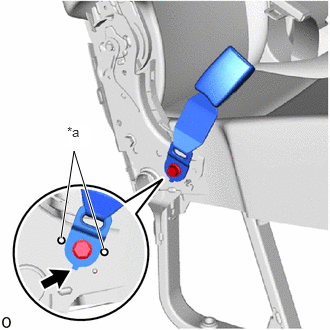

Hide Display 73380T 2.INSTALL REAR 3 PERSONS SEAT BELT ASSEMBLY

2.281,2.49 2.719,1.323 2.719,1.323 2.74,2.354 true 2.656,1 2.875,1.24 0.219,0.24 10 true *a

*a	Protruding Part

Install the rear 3 persons seat belt assembly with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear 3 persons seat belt assembly to overlap the protruding part.

0,0 0,0 false

Fastening Tape

Attach the fastening tape.

Hide Display 3.INSTALL SEAT CUSHION COVER WITH PAD

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REASSEMBLY201906,999999,_58,_078601,_0396036,RM100000001IFKH_04_0099,

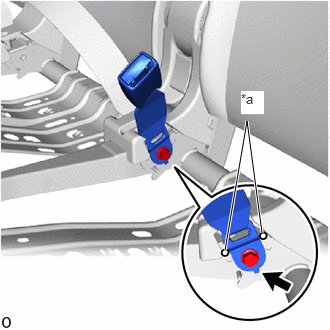

Hide Display 73380R 4.INSTALL REAR 3 PERSONS SEAT BELT ASSEMBLY RH

0.635,2.479 0.771,1.573 0.771,1.573 1.083,2.594 true 0.698,1.292 0.948,1.531 0.25,0.24 10 true *a

*a	Protruding Part

Install the rear 3 persons seat belt assembly RH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear 3 persons seat belt assembly RH to overlap the protruding part.

Hide Display 71834J 5.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REASSEMBLY201906,999999,_58,_078601,_0396036,RM100000001IFKH_04_0084,

Hide Display 71833K 6.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REASSEMBLY201906,999999,_58,_078601,_0396036,RM100000001IFKH_04_0083,

Hide Display 72526J 7.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REASSEMBLY201906,999999,_58,_078601,_0396036,RM100000001IFKH_04_0086,

Hide Display 72525N 8.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 79967X 9.INSTALL REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REASSEMBLY201906,999999,_58,_078601,_0396036,RM100000001IFKH_04_0087,

Hide Display 79967W 10.INSTALL REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REASSEMBLY201906,999999,_58,_078601,_0396036,RM100000001IFKH_04_0059,

Hide Display 11.INSTALL REAR SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>INSTALLATION201906,999999,_58,_078601,_0396036,RM100000001IFKI,
