BRAKE SYSTEM (OTHER)  VACUUM RESERVOIR(for RHD)  REMOVAL

1.REMOVE WINDSHIELD WIPER MOTOR AND LINK

47220D 2.DISCONNECT BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

55738D 3.REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL

55701J 4.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

5.DISCONNECT VACUUM HOSE

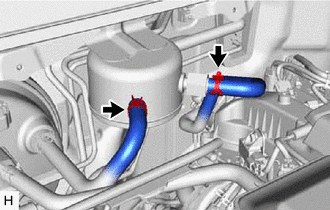

a.

Slide the 2 clips and disconnect the 2 vacuum hoses from the vacuum reservoir assembly.

44730 6.LOOSEN BRAKE VACUUM CHECK VALVE ASSEMBLY

HINT:

This procedure is only performed when the brake vacuum check valve is being replaced or inspected.

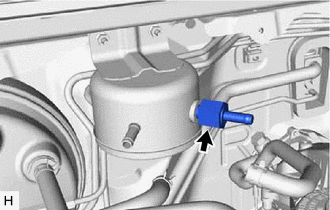

a.

Loosen the vacuum check valve assembly.

44740 7.REMOVE VACUUM RESERVOIR ASSEMBLY

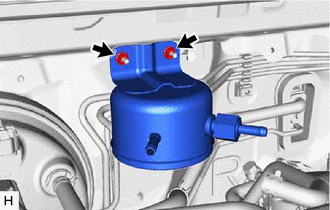

a.

Remove the 2 nuts and vacuum reservoir assembly.
