RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0390092 REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201902,999999,_58,_078601,_0387367,RM100000001HB4X,

Hide Display 79967T 2.REMOVE REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>DISASSEMBLY201902,999999,_58,_078601,_0387367,RM100000001HB4Y_01_0036,

Hide Display 79967U 3.REMOVE REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>DISASSEMBLY201902,999999,_58,_078601,_0387367,RM100000001HB4Y_01_0037,

Hide Display 79967W 4.REMOVE REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>DISASSEMBLY201902,999999,_58,_078601,_0387367,RM100000001HB4Y_01_0038,

Hide Display 79967X 5.REMOVE REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>DISASSEMBLY201902,999999,_58,_078601,_0387367,RM100000001HB4Y_01_0039,

Hide Display 72526H 6.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH (w/ Seatback Board)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>DISASSEMBLY201902,999999,_58,_078601,_0387367,RM100000001HB4Y_01_0002,

Hide Display 72525M 7.REMOVE RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:: Use the same procedure described for the LH side.

Hide Display 71834N 8.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>DISASSEMBLY201902,999999,_58,_078601,_0387367,RM100000001HB4Y_01_0065,

Hide Display 71833N 9.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>DISASSEMBLY201902,999999,_58,_078601,_0387367,RM100000001HB4Y_01_0064,

Hide Display 73330N 10.REMOVE REAR 2 PERSONS SEAT LAP TYPE BELT ASSEMBLY LH

a.

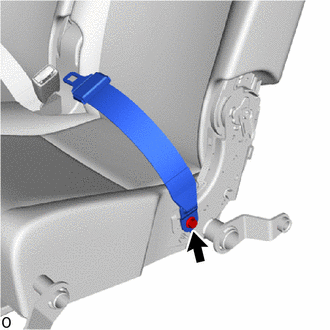

B541375

Remove the bolt and rear 2 persons seat lap type belt assembly LH.

Hide Display 73380N 11.REMOVE REAR 2 PERSONS SEAT BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201902,999999,_58,_078602,_0390091,RM100000001HD6E_02_0102,

Hide Display 12.REMOVE SEAT CUSHION COVER WITH PAD

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>DISASSEMBLY201902,999999,_58,_078601,_0387367,RM100000001HB4Y_01_0025,

Hide Display 73330M 13.REMOVE REAR 2 PERSONS SEAT LAP TYPE BELT ASSEMBLY RH

a.

B540035C01

0,0 0,0 false

V100155

Fastening Tape

Detach the fastening tape and open the rear seat cushion cover.

b.

B541688

Remove the bolt and rear 2 persons seat lap type belt assembly RH.
