SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 73460C 1.INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY

a.
B541009
0.521,0.51 1.688,0.51 true 1.208,0.51 1.208,1.042 1.208,1.042 1.667,1.042 true 2.49,0.51 3.063,0.51 true 2.844,0.521 2.844,1.042 2.844,1.042 2.51,1.042 true 0.323,0.406 0.5,0.604 0.177,0.198 10 false *a 3.073,0.396 3.25,0.594 0.177,0.198 10 true *a
*a Protruding Part

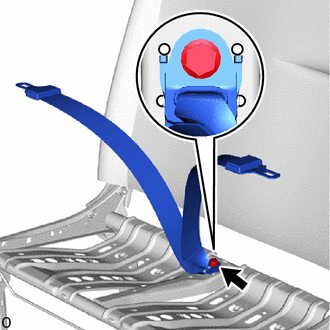

Install the rear center seat inner belt assembly with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear center seat inner belt assembly to overlap the protruding part.



Hide 73380M 4.INSTALL REAR 2 PERSONS SEAT BELT ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 71833Q 6.INSTALL LH SEAT REAR NO.3 SEAT RECLINING COVER

HINT:

Use the same procedure described for the LH side.


Hide 79J67E 9.INSTALL REAR NO. 3 SEAT NO. 3 LEG SIDE COVER

a.
B538104C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and install the rear No. 3 seat No. 3 leg side cover as shown in the illustration.
