RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389971 REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest) A

SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 73380N 1.INSTALL REAR 2 PERSONS SEAT BELT ASSEMBLY LH

a.
B540999
1.875,1.073 2.292,1.073 true 1,1.365 1.417,1.365 true 2.302,0.969 2.49,1.167 0.188,0.198 10 true *a 0.802,1.26 0.99,1.458 0.188,0.198 10 true *a
*a Protruding Part

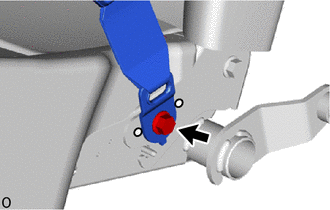

Install the rear 2 persons seat belt assembly LH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear 2 persons seat belt assembly LH to overlap the protruding part.



Hide 73380M 2.INSTALL REAR 2 PERSONS SEAT BELT ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 71833Q 4.INSTALL LH SEAT REAR NO. 3 SEAT RECLINING COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 79J67E 5.INSTALL REAR NO. 3 SEAT NO. 3 LEG SIDE COVER

a.
B538104C01
0,0 0,0 false
V113147

Install in this Direction

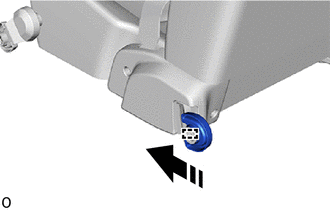

Attach the hook and install the rear No. 3 seat No. 3 leg side cover as shown in the illustration.
