SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Full-trim)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 73570B 2.INSTALL REAR SEAT OUTER BELT ASSEMBLY

a.

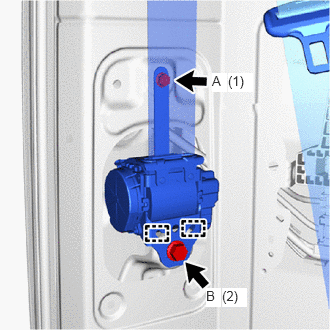

B541721N01
2.208,0.76 2.365,0.958 0.156,0.198 10 true A 2.375,0.76 2.635,0.958 0.26,0.198 10 true (1) 2.146,3 2.302,3.198 0.156,0.198 10 true B 2.313,3 2.573,3.198 0.26,0.198 10 true (2)

Attach the guide.


b.

Temporarily install the rear seat outer belt assembly with the 2 bolts.


c.

Tighten the 2 bolts in the order shown in the illustration.

Torque:
Bolt A : 12.5 N*m (127 kgf*cm, 9 ft.*lbf)
Bolt B : 42 N*m (428 kgf*cm, 31 ft.*lbf)


d.
B541720

Install the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


e.

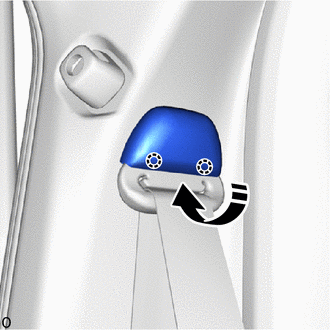

B541719C02
0,0 0,0 false
V113147

Close in this Direction


Attach the claw and close the cover as shown in the illustration.


Hide 73570B 5.INSTALL REAR SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

a.
B541717

Install the floor anchor of the rear seat outer belt assembly with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


b.

Check that the ELR locks.

i.

With the rear seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.
