SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for Van)  INSTALLATION

73380D 1.INSTALL REAR SEAT INNER BELT ASSEMBLY (for RH Side)

a.

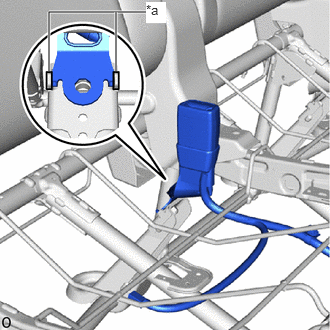

0.51,0.74 0.51,0.125 0.51,0.125 1.521,0.125 true 1.208,0.74 1.208,0.125 true 1.521,0.021 1.729,0.24 0.208,0.219 10 true *a

*a	Protruding Part

Set the rear seat inner belt assembly as shown in the illustration.

NOTICE:

Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding part.

73380A 2.INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY

a.

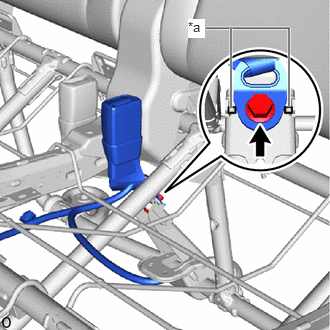

2.146,0.292 3.01,0.292 3.01,0.292 3.01,1.115 true 2.406,1.125 2.406,0.292 true 1.958,0.198 2.135,0.396 0.177,0.198 10 true *a

*a	Protruding Part

Install the rear center seat inner belt assembly with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear center seat inner belt assembly to overlap the protruding part.

b.

w/ Seat Belt Warning System:

i.

Connect the connector and attach the clamp.

73380D 3.INSTALL REAR SEAT INNER BELT ASSEMBLY (for LH Side)

a.

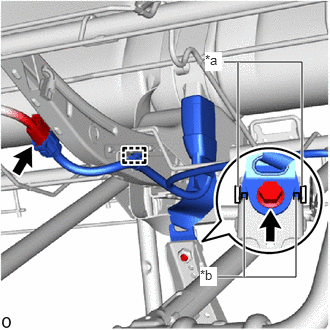

2.333,0.646 3.146,0.646 3.146,0.646 3.146,1.938 true 2.479,1.948 2.479,0.646 true 2.271,2.885 3.083,2.885 3.083,2.885 3.083,2.052 true 2.542,2.885 2.542,2.063 true 2.135,0.542 2.313,0.74 0.177,0.198 10 true *a 2.083,2.781 2.26,2.979 0.177,0.198 10 true *b

*a	Protruding Part for Rear Seat Inner Belt Assembly LH
*b	Protruding Part for Anchor of No. 1 Seat 3 Point Type Belt Assembly LH

Install the rear seat inner belt assembly and anchor of the No. 1 seat 3 point type belt assembly LH with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear seat inner belt assembly and the No. 1 seat 3 point type belt assembly LH to overlap the protruding part.

b.

Check that the ELR locks.

i.

With the No. 1 seat 3 point type belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.

c.

w/ Seat Belt Warning System:

i.

Connect the connector and attach the clamp.

4.INSTALL SEAT CUSHION COVER WITH PAD

73340 5.INSTALL REAR SEAT LAP TYPE BELT ASSEMBLY LH

a.

2.146,1.063 2.906,1.063 true 2.063,1.5 2.063,1.865 true 2.927,0.958 3.24,1.115 0.313,0.156 10 false *a 1.99,1.885 2.302,2.042 0.313,0.156 10 false *a

*a	Protruding Part

Attach the guide.

b.

Install the rear seat lap type belt assembly LH with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear seat lap type belt assembly LH to overlap the protruding part.

73330 6.INSTALL REAR SEAT LAP TYPE BELT ASSEMBLY RH

71834J 7.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

71833K 8.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

72526L 9.INSTALL RECLINING ADJUSTER RELEASE HANDLE LH

72525N 10.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

72329G 11.INSTALL REAR NO. 2 SEAT ADJUSTER BOLT COVER

72329F 12.INSTALL REAR SEAT ADJUSTER BOLT COVER

13.INSTALL REAR SEAT ASSEMBLY

14.INSPECT SEAT BELT WARNING SYSTEM (w/ Seat Belt Warning System)
