EXTERIOR PANELS / TRIM SIDE STRIPE TAPE INSTALLATION
PROCEDURE
1. PRECAUTION

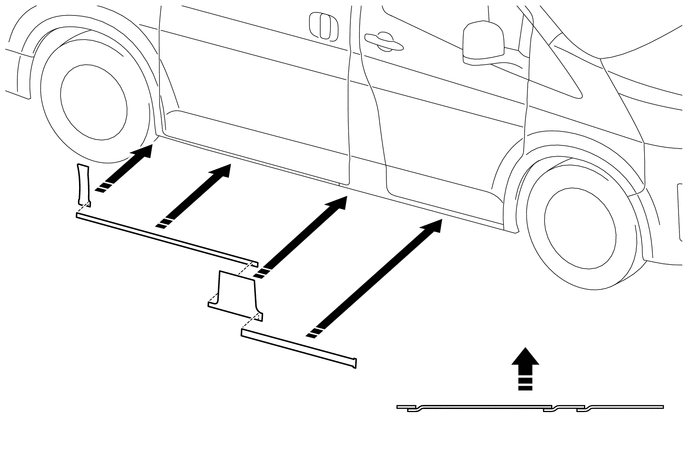

Used part on the LH side.
| *A | for LH Side | - | - |
| *a | Top View | *b | Body Side |
|
Install in this Direction | - | - |

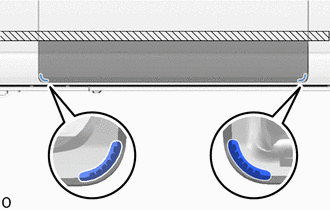

Precaution for replacing tape on the LH side
Stripe tape is applied so that it overlaps (refer to *a in the illustration above). Therefore, the following work is required when replacing it.
| Replace B | Also replace A |
| Replace C | Also replace A and B |

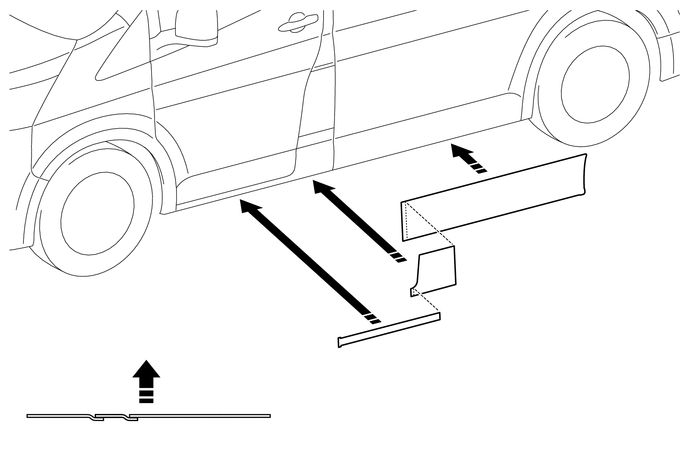

Used part on the RH side.
| *A | for RH Side | - | - |
| *a | Top View | *b | Body Side |
|
|
Install in this Direction | - | - |
Precaution for replacing tape on the RH side
Stripe tape is applied so that it overlaps (refer to *a in the illustration above). Therefore, the following work is required when replacing it.
| Replace B | Also replace A |
| Replace C | Also replace A and B |
| Replace D | Also replace A and B and C |
2. REPAIR INSTRUCTION
Clean the vehicle body surface.
Using a heat light, heat the vehicle body surface.
| Part | Temperature |
|---|---|
| Vehicle Body | 18 to 28°C (64 to 82°F) |
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the vehicle body excessively.
Wipe off any tape adhesive residue with cleaner.
Installation temperature
When the ambient temperature is below 15°C (59°F), perform the installation procedure after warming the vehicle body surface (installation surface of the vehicle body) and tape up to between 18 and 28°C (64 and 82°F) using a heat light. When the ambient temperature is above 35°C (95°F), cool the vehicle body surface (installation surface of the vehicle body) and tape down to between 18 and 28°C (64 and 82°F) prior to installation.
- HINT:
- ·
The most appropriate temperature for installing the tape is 25°C (77°F).
·When the temperature is low, the tape becomes stiff and comes off easily. When the temperature is high, the tape elasticity increases.
Before installation
Remove any coating roughness or dirt on and around the vehicle body surface where the tape will be installed (installation surface of the vehicle body). If any roughness or dirt remains when pressing the tape onto the surface, air will be trapped under the tape and result in a poor appearance.
- HINT:
-
Spray water on the shop floor to settle any dust.
Key points for handling the tape
The tape bends and rolls up easily. Store the tape between flat pieces of cardboard or other similar objects and keep it dry and flat.
- NOTICE:
-
Do not bend the tape or leave it in high temperature places.

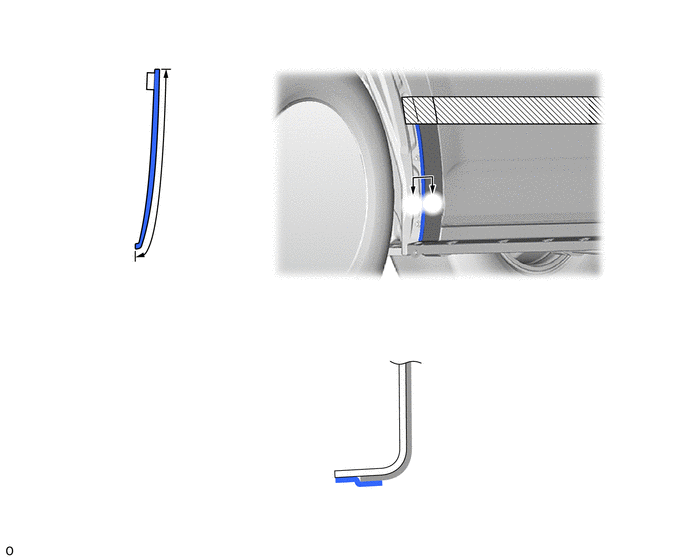

Key points for installation of the tape (How to use a squeegee and installation procedure for flat surfaces)
- NOTICE:
- ·
Position the tape accurately to achieve a neat finish and to avoid peeling.
·The tape cannot be reused because it deforms after removal.
To avoid air bubbles, slightly raise the part of the tape that is going to be applied so that its adhesive surface does not touch the vehicle body prematurely. Tilt the squeegee at 40 to 50° (pressing forward) or 30 to 45° (pulling) to the vehicle body surface and press the tape onto the vehicle body surface with a force of 20 to 30 N (2 to 3 kgf, 4.5 to 6.7 lbf) at a constant slow speed of 30 to 70 mm (1.18 to 2.76 in.) per second.
| *1 | Stripe Tape | - | - |
| *a | Pressing Forward | *b | Pulling |
| *c | Side View | *d | Non-padded Side |
| *e | Padded Side | *f | Squeegee |
| *g | Release Paper | - | - |
- Standard Value:
Area Dimensions Area Dimensions A 10 to 20 mm (0.394 to 0.787 in.) B 30 to 70 mm/sec. (1.18 to 2.76 in./sec.) C 40 to 50° (for pressing forward) D 30 to 45° (for pulling)
- NOTICE:
-
Be sure to observe the specified pressing speed, force and angle of the squeegee to avoid wrinkles or air bubbles.
- HINT:
- ·
Either angle of the squeegee (pressing forward or pulling) is acceptable.
·Be sure to apply the tape while removing the release paper 10 to 20 mm (0.394 to 0.787 in.) from the edge of the squeegee.
Key points for installation of the tape (How to use a squeegee and installation procedure for hemmed surfaces)
| *a | Squeegee |
| *b | Hem |
| *c | First |
| *d | Second |
| *e | Third |
If it is difficult to apply the tape, install it in several steps as shown in the illustration. Use your fingers or the padded surface of a squeegee to slowly apply the tape to the hem of the vehicle, especially for a small hem.
- HINT:
-
When applying tape to the backside of a hem, remove the release paper and use your fingers or the padded surface of a squeegee.
Key points for installation of the tape (How to use a squeegee and installation procedure for corners)
Remove the release paper and apply the tape carefully with your fingers.
Before applying the tape to each corner, heat the tape using a heat light and gradually apply it, avoiding wrinkles on the tape to achieve a neat finish.
Check after installation
After completing the installation, check if the tape is installed neatly. If the tape is not installed neatly, install a new tape.
- NOTICE:
-
Do not reuse the tape.
3. PREPARATION WORK
- HINT:
-
Use the same procedure for the RH and LH sides.

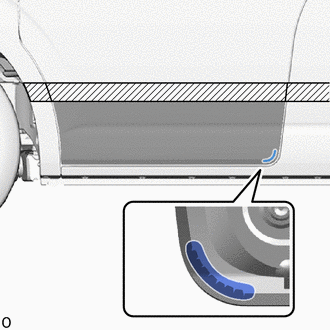

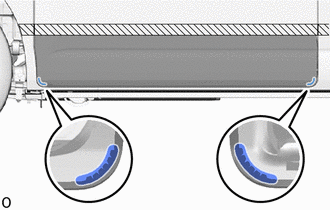

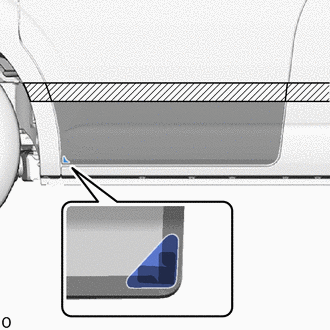

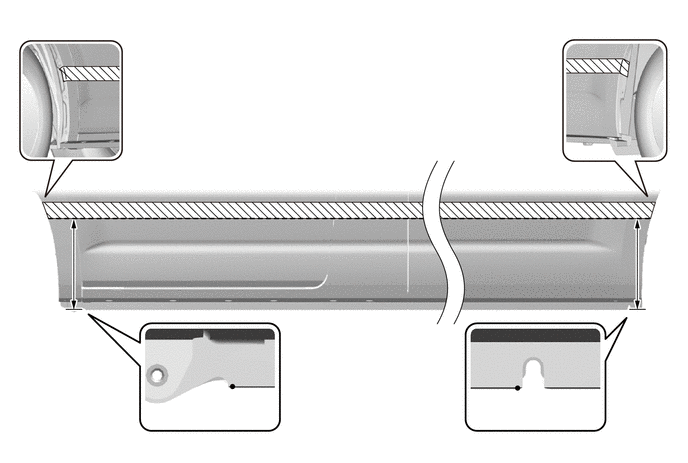

Apply masking tape to the position shown in the illustration.
| *a | Point A | *b | Point B |
| *c | Edge of Curved Surface | - | - |
|
Masking Tape | - | - |
for Standard Roof:
- Standard Value:
Area Dimensions Area Dimensions A 274.6 mm (10.8 in.) B 281.0 mm (11.1 in.)
for High Roof:
- Standard Value:
Area Dimensions Area Dimensions A 274.6 mm (10.8 in.) B 282.0 mm (11.1 in.)
75986A
4.INSTALL SIDE PANEL STRIPE LH (for Standard Roof)
- HINT:
-
When installing the side panel stripe LH, heat the vehicle body and side panel stripe LH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Side Panel Stripe LH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.

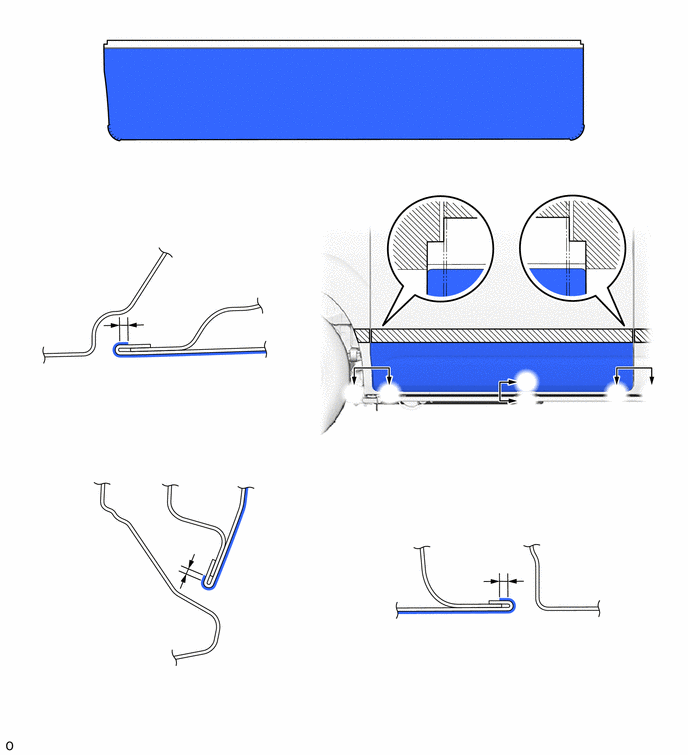

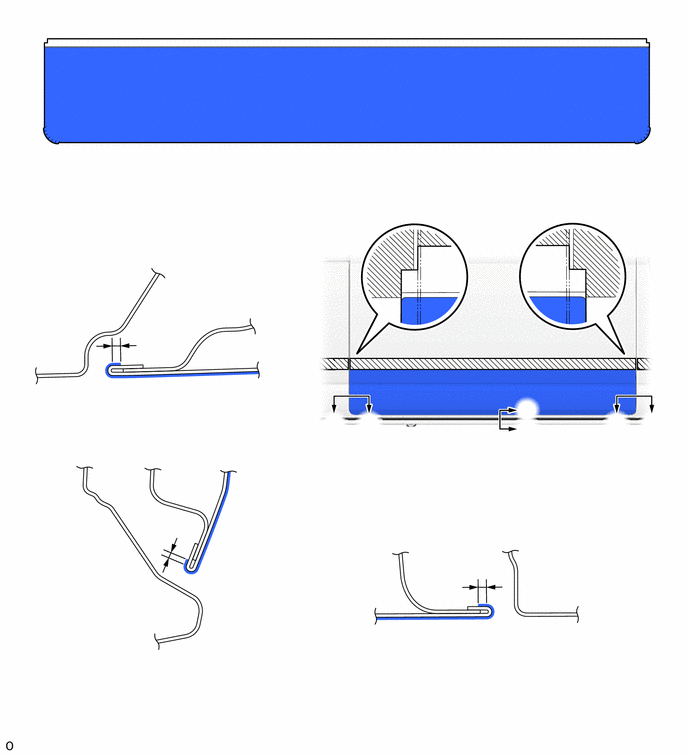

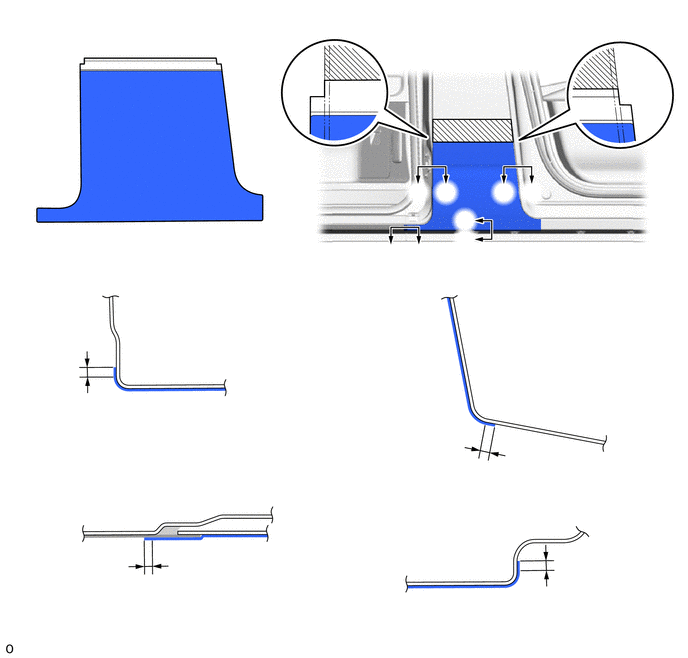

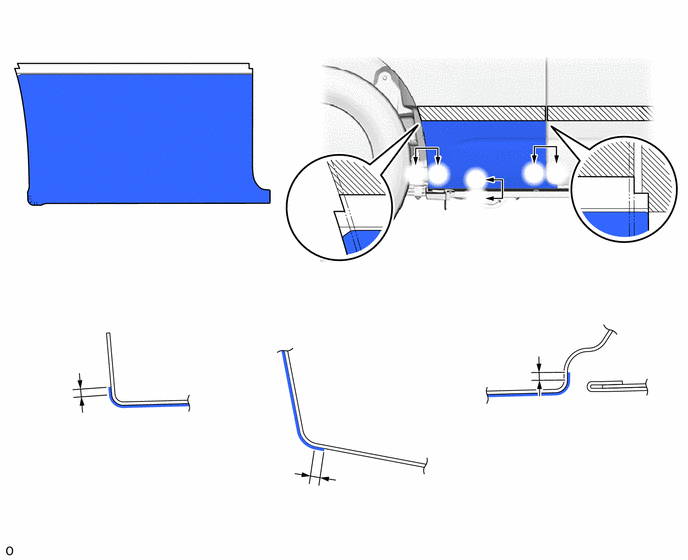

Refer to the illustration to position a new side panel stripe LH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Line E | *f | Line F |
| *g | Edge of Curved Surface | *h | Sealer |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A 3.0 to 7.0 mm (0.118 to 0.276 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) - -
- NOTICE:
-
Randomly pressing the curved surface will cause wrinkles.
- HINT:
-
Align the line (E) on the side panel stripe LH with the line (F) on the masking tape and install the side panel stripe LH.
Remove the release paper and install the side panel stripe LH.
75986A
5.INSTALL SIDE PANEL STRIPE LH (for High Roof)
- HINT:
-
When installing the side panel stripe LH, heat the vehicle body and side panel stripe LH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Side Panel Stripe LH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new side panel stripe LH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Line E | *f | Line F |
| *g | Edge of Curved Surface | *h | Sealer |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A 3.0 to 7.0 mm (0.118 to 0.276 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) - -
- NOTICE:
-
Randomly pressing the curved surface will cause wrinkles.
- HINT:
-
Align the line (E) on the side panel stripe LH with the line (F) on the masking tape and install the side panel stripe LH.
Remove the release paper and install the side panel stripe LH.
75985A
6.INSTALL SIDE PANEL STRIPE RH (for Standard Roof)
- HINT:
-
When installing the side panel stripe RH, heat the vehicle body and side panel stripe RH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Side Panel Stripe RH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.

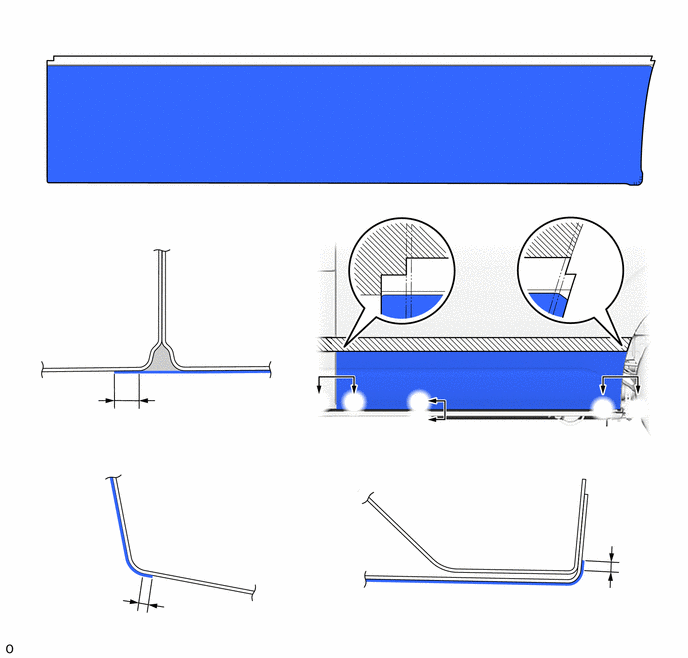

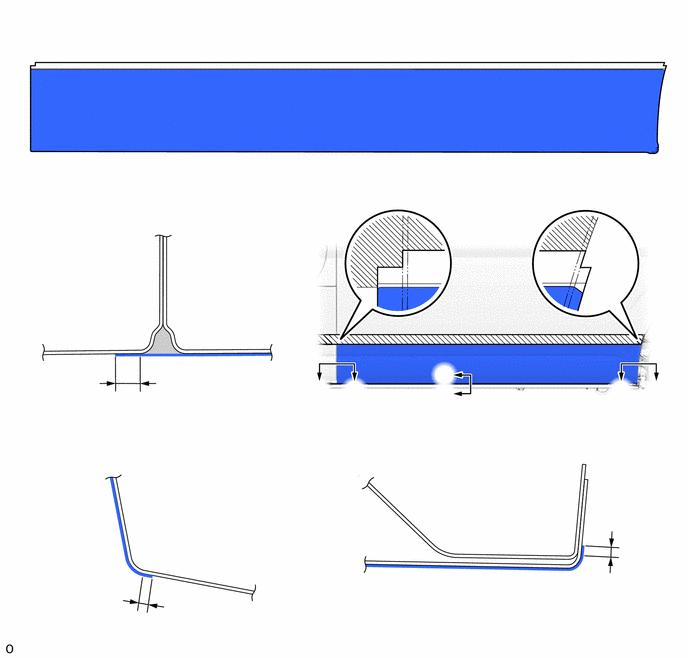

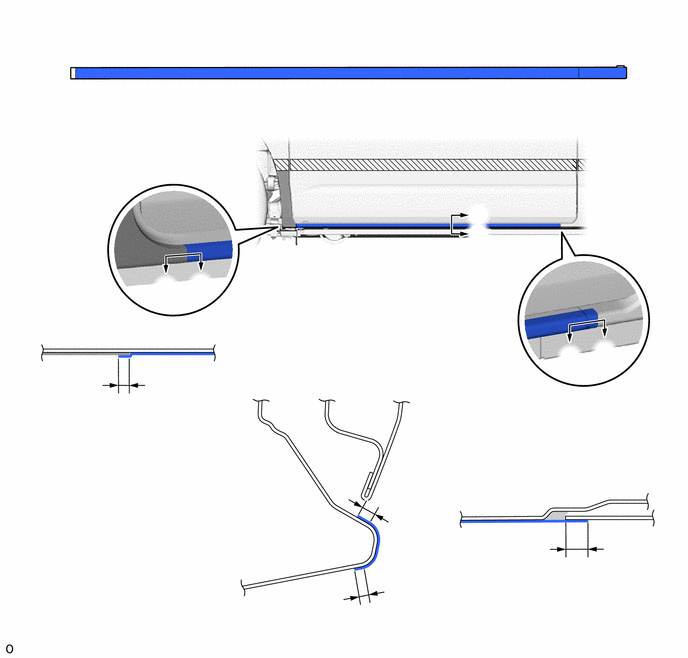

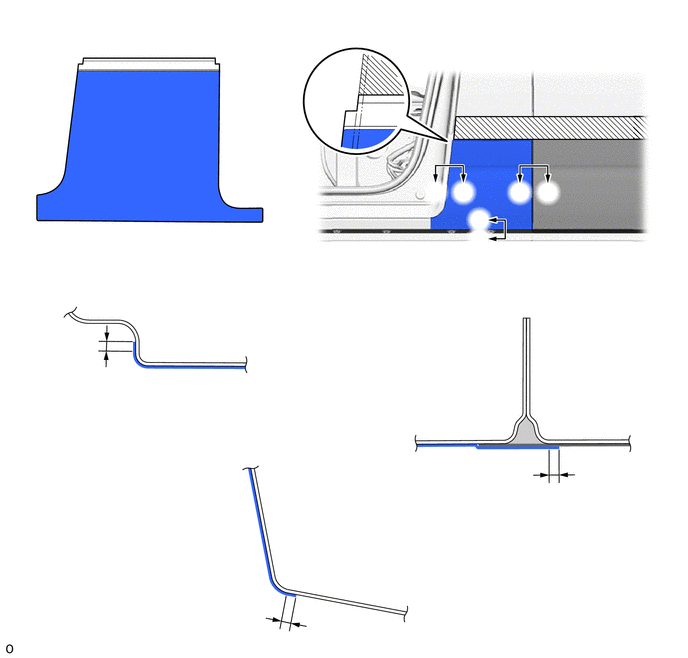

Refer to the illustration to position a new side panel stripe RH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Line E | *f | Line F |
| *g | Edge of Curved Surface | - | - |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 2.0 mm (0.0787 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) - -
- NOTICE:
-
Randomly pressing the curved surface will cause wrinkles.
- HINT:
-
Align the line (E) on the side panel stripe RH with the line (F) on the masking tape and install the side panel stripe RH.
Remove the release paper and install the side panel stripe RH.
75985A
7.INSTALL SIDE PANEL STRIPE RH (for High Roof)
- HINT:
-
When installing the side panel stripe RH, heat the vehicle body and side panel stripe RH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Side Panel Stripe RH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new side panel stripe RH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Line E | *f | Line F |
| *g | Edge of Curved Surface | - | - |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 2.0 mm (0.0787 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) - -
- NOTICE:
-
Randomly pressing the curved surface will cause wrinkles.
- HINT:
-
Align the line (E) on the side panel stripe RH with the line (F) on the masking tape and install the side panel stripe RH.
Remove the release paper and install the side panel stripe RH.
75992A
8.INSTALL QUARTER STRIPE LH
- HINT:
-
When installing the quarter stripe LH, heat the vehicle body and quarter stripe LH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Quarter Stripe LH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.

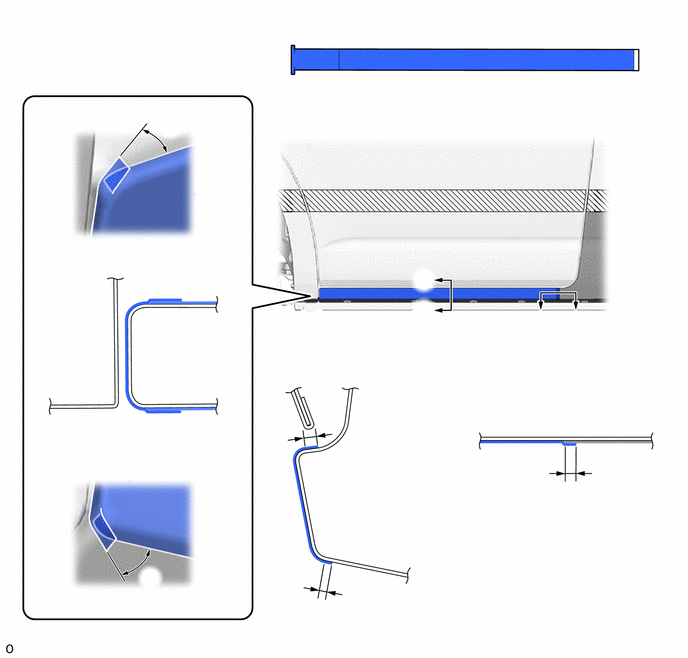

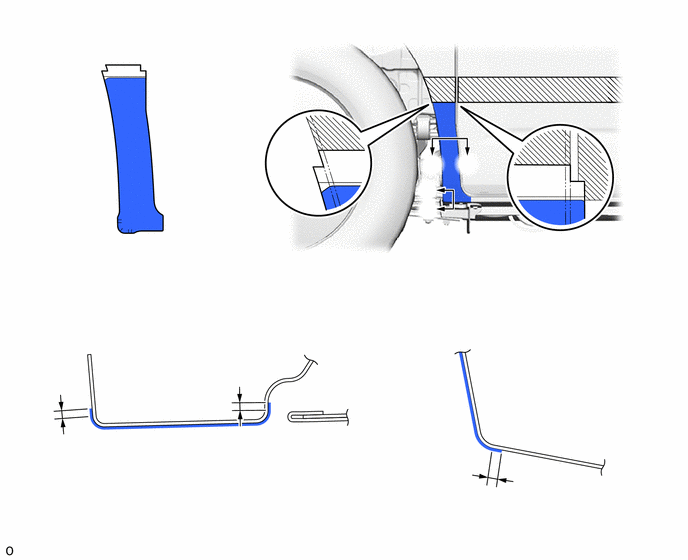

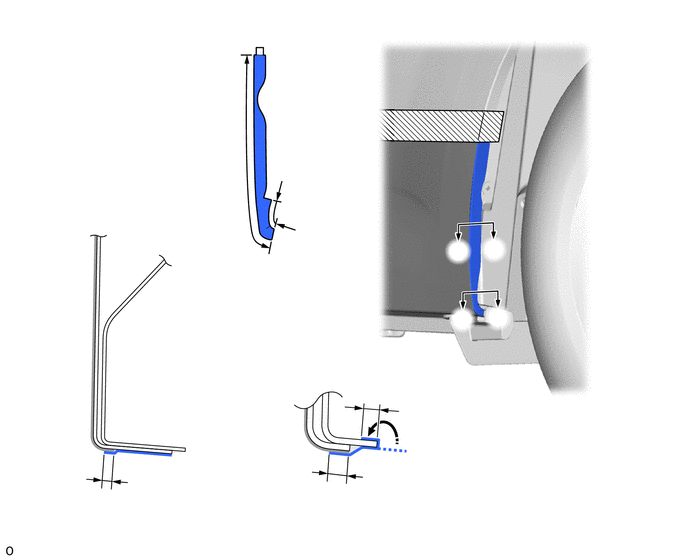

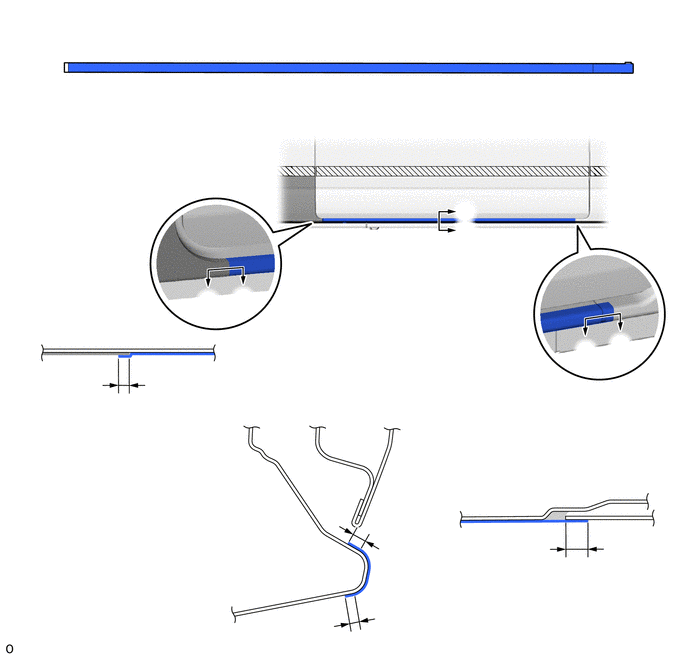

Refer to the illustration to position a new quarter stripe LH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Edge of Panel | *f | Edge of Side Panel Stripe RH |
| *g | Edge of Curved Surface | *h | Sealer |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 2.0 mm (0.0787 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) - -
- NOTICE:
- ·
Randomly pressing the curved surface will cause wrinkles.
·Make sure to firmly press the connection areas to prevent the tape from lifting.
- HINT:
-
Align the line (C) on the quarter stripe LH with the line (D) on the masking tape and install the quarter stripe LH.
Remove the release paper and install the quarter stripe LH.
75991A
9.INSTALL QUARTER STRIPE RH
- HINT:
-
Use the same procedure for the RH and LH sides.
75996D

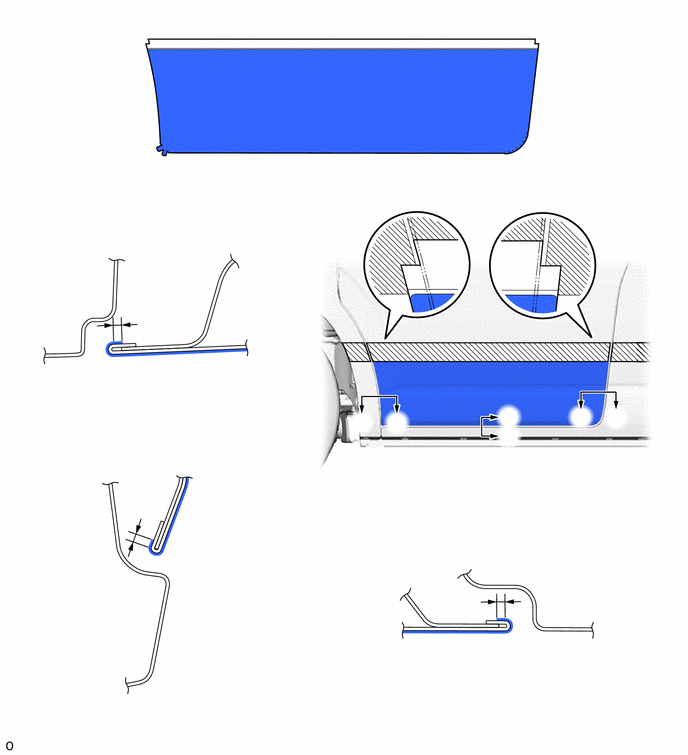

10.INSTALL REAR BODY STRIPE RH (for Standard Roof)
- HINT:
-
When installing the rear body stripe RH, heat the vehicle body and rear body stripe RH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Rear Body Stripe RH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.

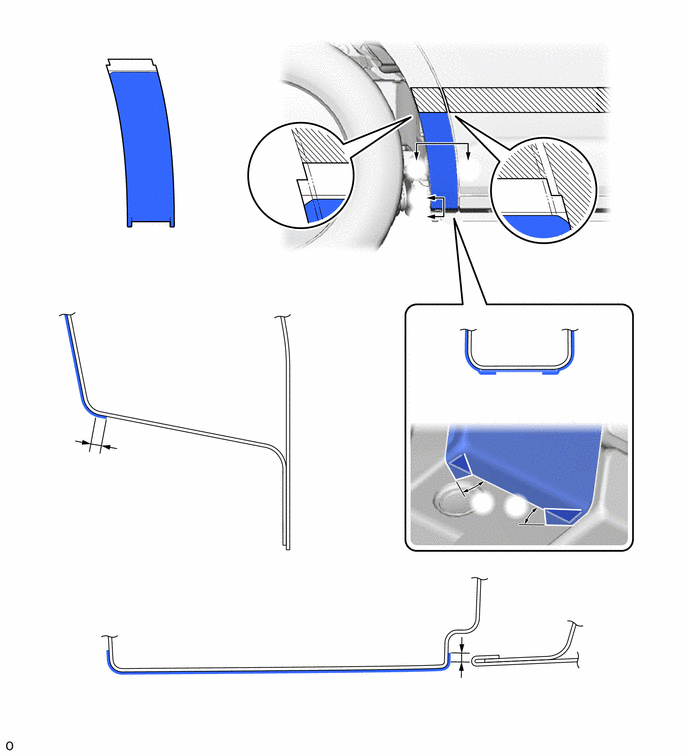

Refer to the illustration to position a new rear body stripe RH.
| *a | Line A | *b | Line B |
| *c | Edge of Panel | *d | Edge of Side Panel Stripe RH |
| *e | Edge of Curved Surface | *f | Sealer |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 4.0 mm (0.157 in.) B More than 2.0 mm (0.0787 in.) C More than 3.0 mm (0.118 in.) D 3.0 to 7.0 mm (0.118 to 0.276 in.)
- NOTICE:
- ·
Randomly pressing the curved surface will cause wrinkles.
·Make sure to firmly press the connection areas to prevent the tape from lifting.
- HINT:
-
When pressing the curved surface, press the upper, side and lower surfaces in straight lines.
Remove the release paper and install the rear body stripe RH.
75996D
11.INSTALL REAR BODY STRIPE RH (for High Roof)
- HINT:
-
When installing the rear body stripe RH, heat the vehicle body and rear body stripe RH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Rear Body Stripe RH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new rear body stripe RH.
| *a | Line A | *b | Line B |
| *c | Edge of Panel | *d | Edge of Side Panel Stripe RH |
| *e | Edge of Curved Surface | *f | Sealer |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 4.0 mm (0.157 in.) B More than 2.0 mm (0.0787 in.) C More than 3.0 mm (0.118 in.) D 3.0 to 7.0 mm (0.118 to 0.276 in.)
- NOTICE:
- ·
Randomly pressing the curved surface will cause wrinkles.
·Make sure to firmly press the connection areas to prevent the tape from lifting.
- HINT:
-
When pressing the curved surface, press the upper, side and lower surfaces in straight lines.
Remove the release paper and install the rear body stripe RH.
75983C
12.INSTALL SLIDE DOOR STRIPE RH (for Standard Roof)
- HINT:
-
When installing the slide door stripe RH, heat the vehicle body and slide door stripe RH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Slide Door Stripe RH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new rear slide door stripe RH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Line E | *f | Line F |
| *g | Edge of Curved Surface | *h | Top of Curved Surface |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 2.0 mm (0.0787 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) - -
- NOTICE:
-
Randomly pressing the curved surface will cause wrinkles.
- HINT:
-
Align the line (E) on the slide door stripe RH with the line (F) on the masking tape and install the slide door stripe RH.
Remove the release paper and install the slide door stripe RH.
75983C
13.INSTALL SLIDE DOOR STRIPE RH (for High Roof)
- HINT:
-
When installing the slide door stripe RH, heat the vehicle body and slide door stripe RH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Slide Door Stripe RH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new rear slide door stripe RH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Line E | *f | Line F |
| *g | Edge of Curved Surface | *h | Top of Curved Surface |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 2.0 mm (0.0787 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) - -
- NOTICE:
-
Randomly pressing the curved surface will cause wrinkles.
- HINT:
-
Align the line (E) on the slide door stripe RH with the line (F) on the masking tape and install the slide door stripe RH.
Remove the release paper and install the slide door stripe RH.
75983A
14.INSTALL SLIDE DOOR STRIPE
- HINT:
-
When installing the slide door stripe, heat the slide door stripe using a heat light.
- Standard Value:
Part Temperature Slide Door Stripe 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
for Standard Roof:
|
|
Masking Tape |
Remove the peeling paper and install a new 2 pieces of slide door stripe at the positions shown in the illustration.
- HINT:
-
Apply the tape so that the attachment surface at the corner is hidden.
for High Roof:
|
|
Masking Tape |
Remove the peeling paper and install a new 2 pieces of slide door stripe at the positions shown in the illustration.
- HINT:
-
Apply the tape so that the attachment surface at the corner is hidden.
75942C
15.INSTALL CENTER PILLAR STRIPE LH
- HINT:
-
When installing the center pillar stripe LH, heat the vehicle body and center pillar stripe LH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Center Pillar Stripe LH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new rear center pillar stripe LH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Edge of Curved Surface | *f | Sealer |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 2.0 mm (0.0787 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) - -
- NOTICE:
- ·
Randomly pressing the curved surface will cause wrinkles.
·Make sure to firmly press the connection areas to prevent the tape from lifting.
- HINT:
-
Align the line (C) on the center pillar stripe LH with the line (D) on the masking tape and install the center pillar stripe LH.
Remove the release paper and install the center pillar stripe LH.
75941
16.INSTALL CENTER PILLAR STRIPE RH
- HINT:
-
When installing the center pillar stripe RH, heat the vehicle body and center pillar stripe RH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Center Pillar Stripe RH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new rear center pillar stripe RH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Line E | *f | Line F |
| *g | Edge of Curved Surface | *h | Sealer |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 2.0 mm (0.0787 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) D More than 2.0 mm (0.0787 in.)
- NOTICE:
- ·
Randomly pressing the curved surface will cause wrinkles.
·Make sure to firmly press the connection areas to prevent the tape from lifting.
- HINT:
-
Align the line (E) on the center pillar stripe RH with the line (F) on the masking tape and install the center pillar stripe RH.
Remove the release paper and install the center pillar stripe RH.
75974E
17.INSTALL FRONT SIDE PANEL STRIPE LH
- HINT:
-
When installing the front side panel stripe LH, heat the vehicle body and front side panel stripe LH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Front Side Panel Stripe LH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new rear front side panel stripe LH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Point A |
| *e | Point B | *f | Edge of Center Pillar Stripe LH |
| *g | Edge of Curved Surface | - | - |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 4.0 mm (0.157 in.) B More than 2.0 mm (0.0787 in.) C More than 3.0 mm (0.118 in.) D 45° E 45° - -
- NOTICE:
- ·
Randomly pressing the curved surface will cause wrinkles.
·Make sure to firmly press the connection areas to prevent the tape from lifting.
- HINT:
-
When pressing the curved surface, press the upper, side and lower surfaces in straight lines.
Remove the release paper and install the front side panel stripe LH.
75973F
18.INSTALL FRONT SIDE PANEL STRIPE RH
- HINT:
-
Use the same procedure for the RH and LH sides.
75986
19.INSTALL FRONT DOOR STRIPE LH
- HINT:
-
When installing the front door stripe LH, heat the vehicle body and front door stripe LH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Front Door Stripe LH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new rear front door stripe LH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Line E | *f | Line F |
| *g | Edge of Curved Surface | *h | Top of Curved Surface |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 2.0 mm (0.0787 in.) B More than 2.0 mm (0.0787 in.) C More than 2.0 mm (0.0787 in.) - -
- NOTICE:
-
Randomly pressing the curved surface will cause wrinkles.
- HINT:
-
Align the line (E) on the front door stripe LH with the line (F) on the masking tape and install the front door stripe LH.
Remove the release paper and install the front door stripe LH.
75985
20.INSTALL FRONT DOOR STRIPE RH
- HINT:
-
Use the same procedure for the RH and LH sides.
75985F
21.INSTALL FRONT DOOR OUTSIDE STRIPE
- HINT:
-
When installing the front door outside stripe, heat the front door outside stripe using a heat light.
- Standard Value:
Part Temperature Front Door Outside Stripe 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
|
|
Masking Tape |
Remove the peeling paper and install a new piece of the front door outside stripe at the position shown in the illustration.
- HINT:
- ·
Apply the tape so that the attachment surface at the corner is hidden.
·Use the same procedure for the RH and LH sides.
75981E
22.INSTALL FRONT FENDER STRIPE
- HINT:
-
When installing the front fender stripe, heat the front fender stripe using a heat light.
- Standard Value:
Part Temperature Front Fender Stripe 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
for Front Door Panel:
|
|
Masking Tape |
Remove the peeling paper and install a new piece of the front fender stripe at the position shown in the illustration.
- HINT:
- ·
Apply the tape so that the attachment surface at the corner is hidden.
·Use the same procedure for the RH and LH sides.
for Rocker Panel:
Remove the peeling paper and install a new piece of the front fender stripe at the position shown in the illustration.
- HINT:
- ·
Apply the tape so that it covers the tab.
·Use the same procedure for the RH and LH sides.
75982B
23.INSTALL FENDER STRIPE LH
- HINT:
-
When installing the fender stripe LH, heat the vehicle body and fender stripe LH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Fender Stripe LH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new rear fender stripe LH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Line D |
| *e | Line E | *f | Line F |
| *g | Point A | *h | Point B |
| *i | Edge of Curved Surface | - | - |
|
|
Masking Tape | - | - |
- Standard Value:
Area Dimensions Area Dimensions A More than 2.0 mm (0.0787 in.) B More than 2.0 mm (0.0787 in.) C 45° D 45°
- NOTICE:
-
Randomly pressing the curved surface will cause wrinkles.
- HINT:
-
Align the line (E) on the fender stripe LH with the line (F) on the masking tape and install the fender stripe LH.
Remove the release paper and install the fender stripe LH.
75981B
24.INSTALL FENDER STRIPE RH
- HINT:
-
Use the same procedure for the RH and LH sides.
75973H
25.INSTALL FRONT FENDER LOWER STRIPE
- HINT:
-
When installing the front fender lower stripe, heat the front fender lower stripe using a heat light.
- Standard Value:
Part Temperature Front Fender Lower Stripe 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
for Front Fender Panel:
Remove the peeling paper and install a new piece of the front fender lower stripe at the position shown in the illustration.
- HINT:
- ·
Apply the tape so that it covers the tab.
·Use the same procedure for the RH and LH sides.
for Rocker Panel:
Remove the peeling paper and install a new piece of the front fender lower stripe at the position shown in the illustration.
- HINT:
- ·
Apply the tape so that it covers the tab.
·Use the same procedure for the RH and LH sides.
75982C
26.INSTALL FRONT FENDER FRONT STRIPE LH
- HINT:
-
When installing the front fender front stripe LH, heat the vehicle body and front fender front stripe LH using a heat light.
- Standard Value:
Part Temperature Vehicle Body 40 to 60°C (104 to 140°F) Front Fender Front Stripe LH 20 to 30°C (68 to 86°F)
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts.
·Touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
When reusing the vehicle body:
Using a heat light, heat the vehicle body surface.
Remove any remaining double-sided tape from the vehicle body.
Wipe off any tape adhesive residue with cleaner.
- NOTICE:
- ·
Installing the roof top moulding with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
·Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
·Clean the vehicle body surface.
Refer to the illustration to position a new rear front fender front stripe LH.
| *a | Line A | *b | Line B |
| *c | Line C | *d | Edge of Curved Surface |
|
|
Masking Tape | - | - |
- HINT:
-
Align the line (B) on the front fender front stripe LH with the line (C) on the masking tape and install the front fender front stripe LH.
Remove the release paper and install the front fender front stripe LH.
75981C
27.INSTALL FRONT FENDER FRONT STRIPE RH
- HINT:
-
Use the same procedure for the RH and LH sides.
28.INSTALL SIDE MUDGUARD (w/ Side Mudguard)
